Light Steel Stud Forming Machine

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China
Payment Type:	L/C, T/T

Product Description

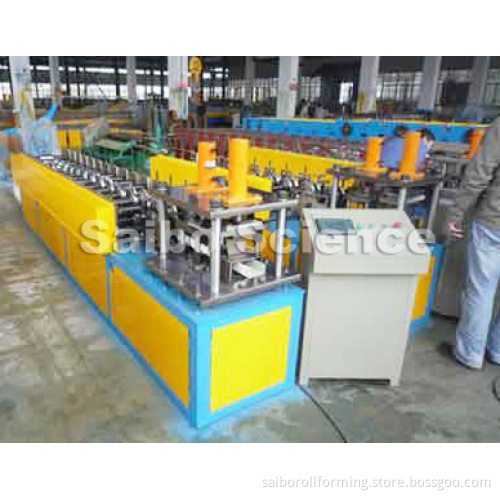

Light steel stud forming machine
1. Brief introduction:
A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.
2. Main technology parameter:
1. Working speed: 12-15m/min (exclude punching and cutting)
2. Roller stations: 14 stations
3. Roller material: GCr15 steel, quenching HRC58-62, surface coated chrome with thickness 0.05mm
4. Main power: 4kw
5. Oil pump: 3kw
6. Hydraulic: 12Mpa
7. Control system: PLC, Panasonic
8. Coder: OMRON
9. Cutting system: Hydraulic, material: Cr12MOV
10. Size: 5500x800x750mm
11. Coil thickness: 0.5mm-1.2mm
12. Tolerance: 3m± 1.5mm
13. Transmission: Chain
