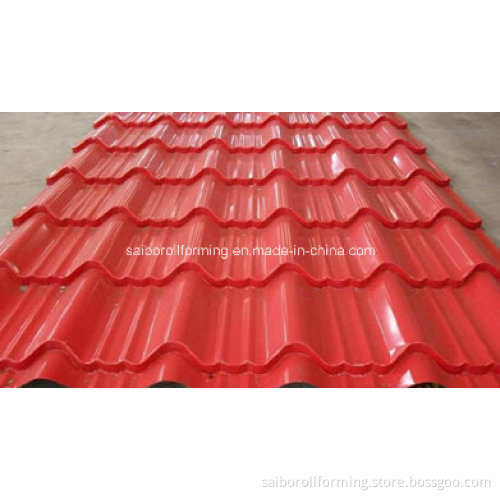

Steel Tile Roll Forming Machine

I: Composition of machineRoll forming main machine^^^^^^^^^^^1 unitManual de-coiler^^^^^^^^^^^^^^^ 1 unitControl panel^^^^^^^^^^^^^^^^. 1 unitHydraulic station^^^^^^^^^^^^^^ ^1 unitManual out table^^^^^^^^^ ^^^^^^. 2 unitSpare tools^^^^^^^^^^^^^^^^^...One boxII: Details of each compositionA: Roll forming main machine1: Coil width: 1250mm cover width: 1100mm2: Working speed: 2-3m/min3: Roll station: 16stations4: Material of roller: 45#forge steel, polished and coated with chrome5: Material of main shaft: 45forge steel diameter roller: 76mm6: Main power: 5.5kw7: Forming thickness: 0.4mm_0.6mm color steel and galvanized steel8: Transmission: By chain9: Size of machine: 8500x1400x1200(mm) L x W x H10: Weight: About 6000Kgs11: Color of machine: Yellow and blue ( it is also can changed depend on customer request)12: Cutting: (1)Flat-sheet cutting: It is used when changing the coil of raw material; It can cut the coil rapidly and time-saving. (2)Cutting after forming: Cut the sheet after roll forming to required length(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. (4)Material of blade: CR12with heat treatment(5)Length measuring: Automatic length measuring(6)Tolerance of length: +/- 1.5mmB. UncoilerDimensions: 1700mm*1000mm*800mmWidth of feeding: 1300mmCapability: 5 TonBound of expand &fight: 450mm_550mmMode of expand &fight: Inner expand &fight by manualWay of feeding: ManualC: Control panel Panasonic(1)Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (this is can depend on customer request)(2)Automatic length measurement: (3)Automatic quantity measurement(4)Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved(5)Length inaccuracy can be amended easily. (6). Control panel: Button-type switch and touch screen(7)Unit of length: Millimeter (switched on the control panel)D: Hydraulic station1: Hydraulic station power: 4kw2: Hydraulic pressure: 12MpaE: Manual out table: (1)Jointed by 60mm*40mm tube(2)Size: 1.0m long*0.8mwide*0.6-1mhigh(3)One out table with two support roller
