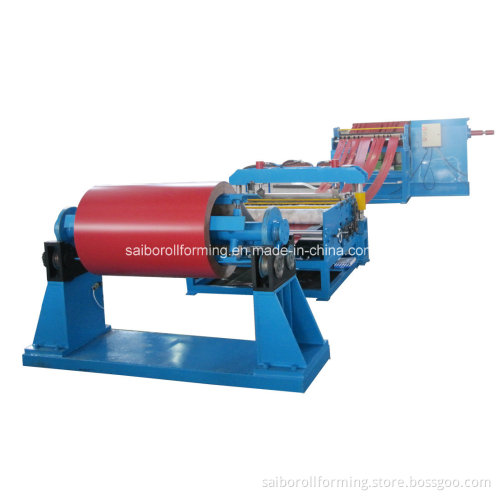

Slitting and Cut to Length Machine Line

Get Latest Price

Payment Type:: L/C, T/T, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Money Gram, Western Union

Product Description

Slitting LineThe line includes in decoiler, guiding device, slitting device, cutting device, length measure device, extension device, recoiler, coil car, hydraulic station, PLC controlling system1. Technical ParametersRaw material specifications: Raw material: Pre-painted steelThickness: 0.3--0.8mmWidth: 300-1250mmInner diameter: 508mmmmMax out diameter: 1200mmMax weight: 5 TDecoiler specifications: Max coil weight: 5 TInner diameter: 508mmMax out diameter: 1200mmHydraulic station power: 4KwDecoiler speed: 0-15m/minSlitting device specifications: Slitting speed: 0-15mm/minDriving motor: 2.2 KwSlitting shaft diameter: 100mmShearing blade: 9 piecesMax slitting pieces: 10 piecesMin slitting width: 100mmShearing blade material: 12CrMoVPinching roller: 2 couplesCutting device: Cutting thickness: 0.3_0.8mmCutting length: 500-4000mmCutting width: 900-1250mmCutting speed: 4-5PCS/min(2000mm per PC)Cutting station power: 5.5Kw. Coil car: Max coil weight: 5 TLifting journey: 600mmMoving distance: 2000mm
