Product Description

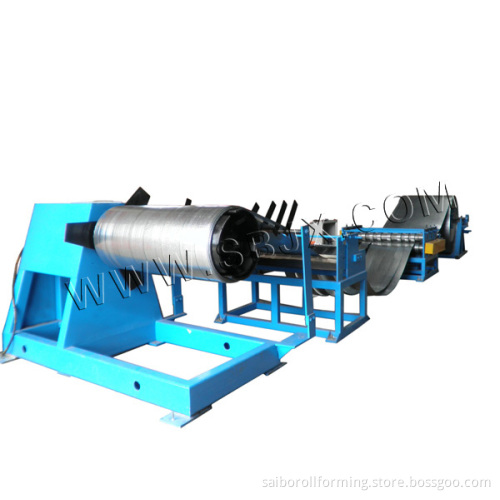

Slitting Line
The line includes in decoiler, guiding device, slitting device, cutting device, length measure device, extension device, recoiler, coil car, hydraulic station, PLC controlling system

1. Technical Parameters
Raw material specifications: Raw material: Pre-painted steel
Thickness: 0.3--0.8mm
Width: 300-1250mm
Inner diameter: 508mmmm
Max out diameter: 1200mm
Max weight: 5 T
Decoiler specifications:
Max coil weight: 5 T
Inner diameter: 508mm
Max out diameter: 1200mm
Hydraulic station power: 4Kw
Decoiler speed: 0-15m/min
Slitting device specifications: Slitting speed: 0-15mm/min
Driving motor: 2.2 Kw
Slitting shaft diameter: 100mm
Shearing blade: 9 pieces
Max slitting pieces: 10 pieces
Min slitting width: 100mm
Shearing blade material: 12CrMoV
Pinching roller: 2 couples
Cutting device: Cutting thickness: 0.3_0.8mm
Cutting length: 500-4000mm
Cutting width: 900-1250mm
Cutting speed: 4-5PCS/min(2000mm per PC)
Cutting station power: 5.5Kw.
Coil car: Max coil weight: 5 T
Lifting journey: 600mm
Moving distance: 2000mm
