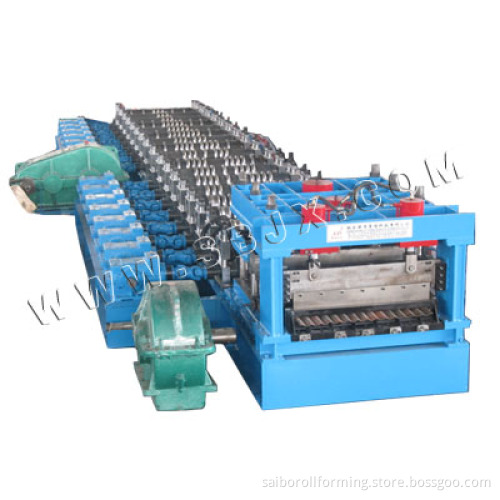

Silo Roll Forming Machine

Get Latest Price

Payment Type:: L/C, T/T, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Money Gram, Western Union

Product Description

Main technology parameters:
1: Coil width: Depend on customer request profile
2: Working speed: 12m— 15m/min (not contain cutting)
3: Roll station: 16 stations
4: Material of roller: Gcr15 steel, polished and coated with chrome
5: Material of main shaft: 45# forge steel diameter roller: 150mm
6: Main power: 45kw
7: Forming thickness: 1.5mm— 3mm mild steel
8: Transmission: By chain
9: Dimension of machine: : 8500× 1000× 1100mm
10: Weight of machine: About 10000Kgs
11: Color: Blue and yellow (it is also can changed depend on customer request)
12: Cutting:
(1) Cutting after forming: Cut the sheet after roll forming to required length
(2) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(3) Material of blade: CR12with heat treatment
(4) Length measuring: Automatic length measuring
(5) Tolerance of length: +/- 1.5mm
