Double Layer Roll Forming Machine

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

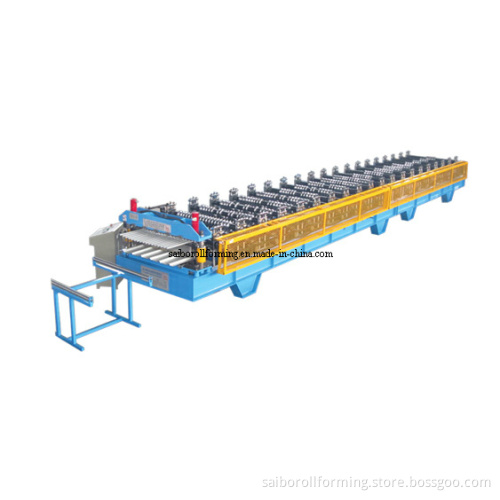

Double layer Roll Forming Machine
1. Brief introduction:
A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.
D. One machine can produce two difference profiles

2. Main technology parameter:
1. Main power: 5.5KW
2. Roll station: Upper 18stations; Down 18 stations
3. Size of roll forming machine: About 9.4m*1.65m*1.2m
4. Diameter of shaft: 70mm
5. Thickness of formed steel: 0.3mm-0.8mm
6. Width of raw material: 1250mm (can depend on client request)
7. Material of the roller: 45#forge steel, machined with numerical control, polished and coated with chrome, surface with 0.05mm
8. Hydraulic power: 4KW
9. Computer adopt PLC, Panasonic
10. Computer operating board: Touch screen
11. Length tolerance: +/-1.5mm
12. Working speed: 12-15m/min(not including cutting)
13. Hydraulic pressure: 12Mpa
14. Machine with manual pre -cutter and hydraulic after cutting
Equipment include: uncoiler, roll forming machine, hydraulic station, hydraulic shear, PLC cabinet, output table
