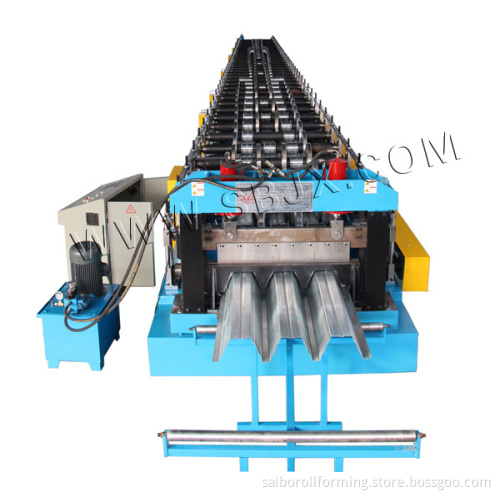

Metal Deck Roll Forming Machine (new station)

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, China
Payment Type:	L/C, T/T, Western Union

Product Description

Product DescriptionYX153 Metal Deck Roll Forming Machine1. Brief introduction: A. Simple structure and beautiful outlook; B. Easy to setting and operationC. Little noise and high working efficiency. 2. Main technology parameter: 1. Size of sheet (mm): 1500mm2. Working speed: 12-15m/min(not including cut-to-length)3. Roll station: 42 stations4. Material of rolls: 45#, polished and coated with chrome5. Diameter: 115mm6. Main power: 33 kw7. Hydraulic station motor power: 7.5 kw8. Hydraulic pressure: 20 Mpa9. Electrical control system: PLC control OMRON Panasonic10. Material of cutting: Cr12MOV11. Thickness: 0.8mm- 1.5mm12. Tolerance of length: ± 1.5 mm13. Transmission: Double chain 1.2 inch
