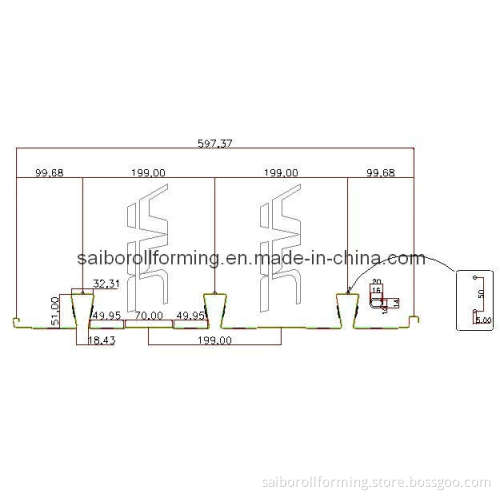

Metal Deck Roll Forming Machine (YX51-199-597)

I: Composition of machineRoll forming main machine^^^^^^^^^^^. 1 unit5T manual de-coiler^^^^^^^^^^^^^^. 1 unitControl panel^^^^^^^^^^^^^^^^...1 unitHydraulic station^^^^^^^^^^^^^^ ^1 unitManual out table^^^^^^^^^^^^^ ^^2 unitSpare tools^^^^^^^^^^^^^^^^^...One boxII: Details of each compositionA: Roll forming main machine1: Coil width: 1000mm2: Working speed: 12m_15m/min (not contain cutting)3: Roll station: 35stations4: Material of roller: Gcr15 forge steel, polished and coated with chrome HRC58-62°5: Material of main shaft: 45# forge steel diameter roller: 85mm6: Feeding and guide: Adopt hand wheel to easy adjust the feeding with7: Main power: 30KW (2 x15kw)8: Forming thickness: 0.8mm_1.2mm 195Mpa-345Mpa9: Transmission: By 1.2 inch double chain (made from Japan)10: Size of machine: 17000× 1300× 1300mmL x W x H (machine in two parts)11: Weight: About 13000Kgs12: Color: Blue13: Structure of frame: H beam steel plate14: Machine has a STOP button near the entrance of roll forming machine and also have remote control for our Stop Button.15: Machine should be have function can make log in mirrored APC (As profile show)16: Machine should be having function make DOT in the profile to make the end product stronger.17: Cutting:(1)Cutting type: Adopt hydraulic cutting(2)Cutting after forming: Cut the sheet after roll forming to required length(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.(4)Material of blade: CR12with heat treatment(5)Length measuring: Automatic length measuring(6)Tolerance of length: 3mm+/- 1.5mmB. 5T manual de-coiler1. Dimensions: 1700mm*1000mm*800mm2. Width of feeding: 1250mm3. Capability: 5Ton4. Bound of expand &fight: 450mm_650mm5. Mode of expand &fight: Inner expand &fight by manual6. Way of feeding: ManualC: Control panel Panasonic1. Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase2. Automatic length measurement:3. Automatic quantity measurement4. Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved5. Length inaccuracy can be amended easily.6. Control panel: Button-type switch and touch screen7. Unit of length: Millimeter (switched on the control panel)8. Language: EnglishD: Hydraulic station1: Hydraulic station power: 5.5kw2: Hydraulic pressure: 20MpaE: Manual out table:(1)Jointed by 60mm*40mm tube(2)Size: 1.0m long*0.8mwide*0.6-1mhigh(3)One out table with two support rollerTechnological processDecoiling_feeding_guide------roll forming ----cut to length_product packing manual
