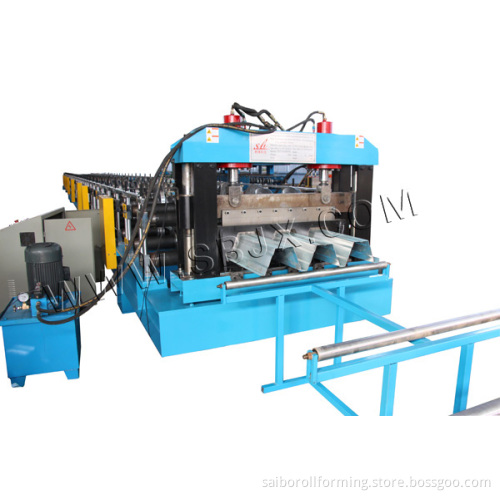

Yx153 Metal Deck Roll Forming Machine

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

Product name:YX153 Metal deck roll forming machine
Description:
1. Brief introduction:
A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.

2. Main technology parameter:
1) Main power: 3*11KW
2) Roll stations: 42stations
3) Drive way: 1.5 inch double chains
4) Diameter of shaft: 115mm
5) Cutting system: Hydraulic cutting
6) Length tolerance: ± 1.5mm
7) Working speed: 12-16m/min
8) Thickness of material: 0.8-1.5mm
9) Material of shaft: GCr15 steel, quenching HRC58-62
10) Material of blade: Cr12, quenched 58-62
11) Material of Rolls: Q195, Q235.
12) Transducer: Panasonic
13) Hydraulic pressure: 20Mpa
14) Hydraulic power: 5.5kw
15) Control system: PLC, Panasonic
