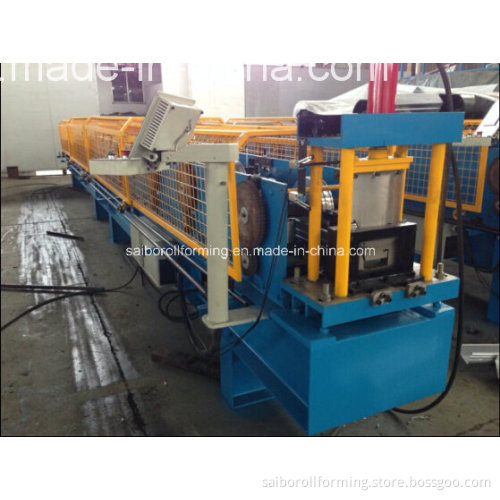

Gutter Roll Forming Machine Machine

I: Composition of machineRoll forming main machine^^^^^^^^^^^1 unitManual de-coiler^^^^^^^^^^^^^^ ^1 unitControl panel^^^^^^^^^^^^^^^^^1 unitHydraulic station^^^^^^^^^^^^^^ ^1 unitManual out table^^^^^^^^^ ^^^^^^. 2 unitSpare tools^^^^^^^^^^^^^^^^^...One boxII: Details of each compositionA: Roll forming main machine1: Coil width: Base on customer profile2: Working speed: 0m_120m/min (not contain cutting)3: Roll station: 15 stations4: Material of roller: 45#forge steel, polished and coated with chrome5: Material of main shaft: 45forge steel diameter roller: 56mm6: Main power: 5.5kw7: Forming thickness: 0.4-0.7mm color steel8: Transmission: By Chains9: Size of machine: About 8500 x 1200 x 1200 (L x W x H)10: Weight: About 5500Kgs11: Color: Blue and yellow (also can change depend on customer request)12: Machine adopts new station to make machine stronger.13: Cutting:(1) Machine adopt hydraulic cutting(2)Cutting after forming: Cut the sheet after roll forming to required length(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.(4)Material of blade: CR12with heat treatment(5)Length measuring: Automatic length measuring(6)Tolerance of length: 3m +/- 1.5mmB. De-coilerDimensions: 1700mm*1000mm*800mmWidth of feeding: 500mmCapability: 3 TonBound of expand &fight: 450mm_550mmMode of expand &fight: Inner expand &fight by manualWay of feeding: ManualC: Control panel Panasonic(1)Voltage, Frequency, Phase: 220 V, 60 Hz, 3Phase(2)Automatic length measurement:(3)Automatic quantity measurement(4)Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved(5)Length inaccuracy can be amended easily.(6). Control panel: Button-type switch and touch screen(7)Unit of length: Millimeter (switched on the control panel)D: Hydraulic station1: Hydraulic station power: 4kw2: Hydraulic pressure: 12MpaE: Manual out table:(1)Jointed by 60mm*40mm tube(2)Size: 1.0m long*0.8mwide*0.6-1mhigh(3)One out table with two support roller.
