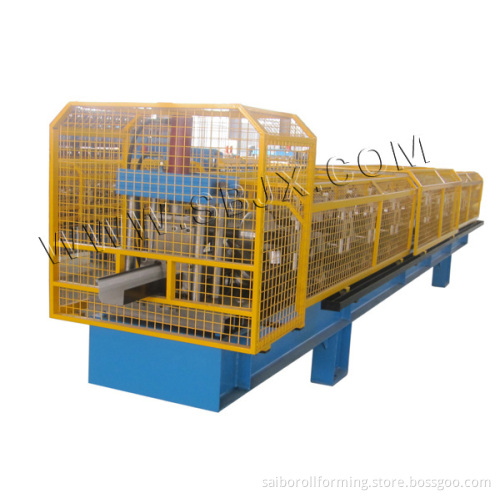

Gutter Roll Forming Machine

Get Latest Price

Payment Type:: L/C, T/T, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Money Gram, Western Union

Product Description

Details of each composition
A: Roll forming main machine
1: Coil width: Base on customer profile
2: Working speed: 0m-20m/min (not contain cutting)
3: Roll station: 15 stations
4: Material of roller: 45#forge steel, polished and coated with chrome
5: Material of main shaft: 45forge steel diameter roller: 56mm
6: Main power: 5.5kw
7: Forming thickness: 0.4-0.7mm color steel
8: Transmission: By Chains
9: Size of machine: About 8500 x 1200 x 1200 (L x W x H)
10: Weight: About 5500Kgs
11: Color: Blue and yellow (also can change depend on customer request)
12: Machine adopts new station to make machine stronger.
13: Cutting:
(1) Machine adopts hydraulic cutting
(2)Cutting after forming: Cut the sheet after roll forming to required length
(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4)Material of blade: CR12with heat treatment
(5)Length measuring: Automatic length measuring
(6)Tolerance of length: +/- 1.5mm

B. De-coiler
Dimensions: 1700mm*1000mm*800mm
Width of feeding: 500mm
Capability: 3 Ton
Bound of expand &fight: 450mm_550mm
Mode of expand &fight: Inner expand &fight by manual
Way of feeding: Manual

C: Control panel Panasonic
(1)Voltage, Frequency, Phase: 220 V, 60 Hz, 3Phase
(2)Automatic length measurement:
(3)Automatic quantity measurement
(4)Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
(5)Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7)Unit of length: Millimeter (switched on the control panel)

D: Hydraulic station
1: Hydraulic station power: 4kw
2: Hydraulic pressure: 12Mpa

E: Manual out table
(1)Jointed by 60mm*40mm tube
(2)Size: 1.0m long*0.8mwide*0.6-1mhigh
(3)One out table with two support rollers
