Squareness Down Pipe Roll Forming Machine

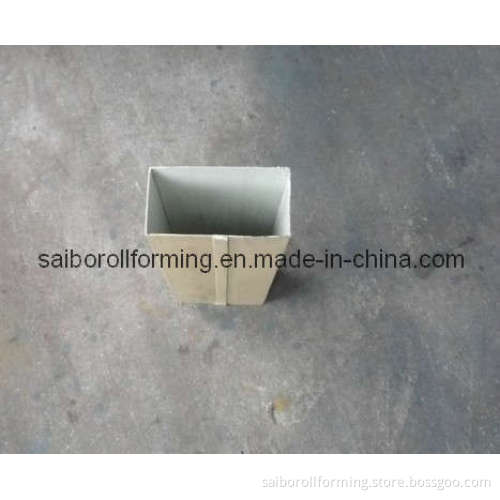

Product DescriptionProduct name: Down pipe roll forming machine, down pipe forming machine, tube forming machine. Product Description Down pipe forming machine mainly consists of decoiler, roll forming system, cutting equipment, protective guard, hydraulic system, control system, and product supporter. Curving pipe forming machine is the complementary equipment for down pipe forming machine. It can make curve for down pipe to meet the requirement of practical engineering projects. Features 1. High efficiency: Capable of producing down pipes with any length. 2. Good appearance: The color of down pipe can be in accordance with the house 3. Easy installation and long lifetime. II: Details of each compositionA: Roll forming main machine1: Coil width: Depend on profile2: Working speed: 8m_10m/min (not contain cutting)3: Roll station: 20stations4: Material of roller: 45#forge steel, polished and coated with chrome5: Material of main shaft: 45forge steel diameter roller: 56mm6: Main power: 3kw7: Forming thickness: 0.5mm color steel8: Transmission: By Chains9: Size of machine: About 8500 x 1000 x 1200 (L x W x H)10: Weight: About 4500Kgs11: Color: Blue and yellow (also can change depend on customer request)10: Cutting: (1)Flat-sheet cutting: It is used when changing the coil of raw material; It can cut the coil rapidly and time-saving. (2)Cutting after forming: Cut the sheet after roll forming to required length(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. (4)Material of blade: CR12with heat treatment(5)Length measuring: Automatic length measuring(6)Tolerance of length: +/- 1.5mmB. UncoilerDimensions: 1700mm*1000mm*800mmWidth of feeding: 500mmCapability: 3 TonBound of expand &fight: 450mm_550mmMode of expand &fight: Inner expand &fight by manualWay of feeding: ManualC: Control panel Panasonic(1)Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (this is can depend on customer request)(2)Automatic length measurement: (3)Automatic quantity measurement(4)Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved(5)Length inaccuracy can be amended easily. (6). Control panel: Button-type switch and touch screen(7)Unit of length: Millimeter (switched on the control panel)D: Hydraulic station1: Hydraulic station power: 7.5kw2: Hydraulic pressure: 12MpaE: Down pipe elbow machine: 1: Control system: Strong electrical current2: Main motor power: 2.2kw3: Max bend angle: 9004: Function: Bend and fasten at the same time5: Dimension of the machine: 1300 mm× 650 mm× 1500 mm6: Speed of bend: 20-25m/ minF: Manual out table: (1)Jointed by 60mm*40mm tube(2)Size: 1.0m long*0.8mwide*0.6-1mhigh(3)One out table with two support roller.
