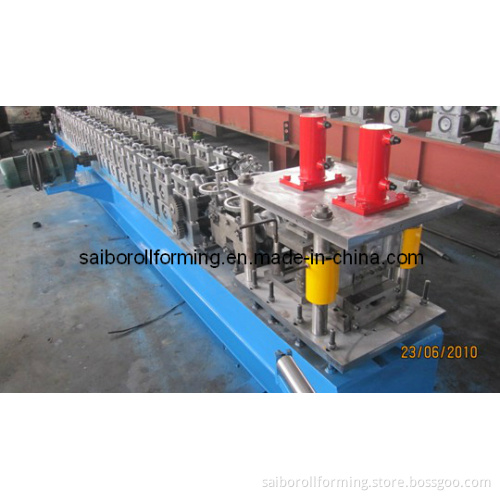

Garage Door Shutter Automatic Roll Forming Machine

Our product: Roll shutter door forming machine, shutter door forming machine, door frame forming machine. Machine's components: This kind of machine consist of uncoiler and its base, coil sheet guiding and adjusting device, roll forming system, punching system(optional), Hydraulic post cutting system, PLC control system, run out table. Main technical parameters: 1: Coil width: Depend on customer request profile2: Working speed: 12m-15m/min (not contain cutting)3: Roll station: 14 stations4: Material of roller: 45#forge steel, polished and coated with chrome5: Material of main shaft: 45forge steel diameter roller: 56mm6: Main power: 4kw7: Forming thickness: 0.5mm-1.2mm color steel and galvanized steel8: Transmission: By Chains 1 inch9: Cutting: (1) Cutting after forming: Cut the sheet after roll forming to required length(2) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. (3) Material of blade: CR12with heat treatment(4) Length measuring: Automatic length measuring(5) Tolerance of length: +/- 1.5mm
