Garage Door Roll Forming Machine

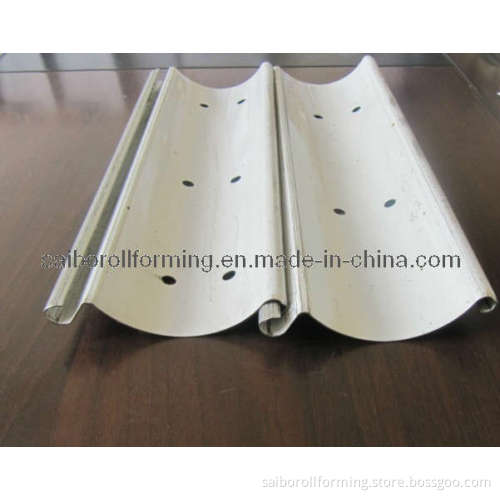

Our product: Roll shutter door forming machine, shutter door forming machine, door frame forming machine. Machine's components: This kind of machine consist of uncoiler and its base, coil sheet guiding and adjusting device, roll forming system, punching system(optional), Hydraulic post cutting system, PLC control system, run out table. Main technical parameters: A: Roll forming main machine1: Coil width: 266mm2: Working speed: 12m-15m/min (not contain cutting)3: Roll station: 12 stations4: Material of roller: 45#forge steel, polished and coated with chrome5: Material of main shaft: 45forge steel6: Main power: 3kw7: Forming thickness: 0.5mm-1.0mm color steel and galvanized steel8: Transmission: By Chains 1 inch9: Dimension of machine: : 5600× 1000× 1100mm10: Weight of machine: About 4000Kgs11: Color: Blue and yellow ( it is also can changed depend on customer request)12: Cutting: (1) Machine adopt fly-cutting(2) Cutting after forming: Cut the sheet after roll forming to required length(3) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. (4) Material of blade: CR12with heat treatment(5) Length measuring: Automatic length measuring(6) Tolerance of length: 3m+/- 1.5mmB. Un-coilerDimensions: 1700mm*1000mm*800mmWidth of feeding: 300mmCapability: 3 TonBound of expand &fight: 450mm_550mmMode of expand &fight: Inner expand &fight by manualWay of feeding: ManualC: Control panel Panasonic(1) Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase(2) Automatic length measurement: (3) Automatic quantity measurement(4) Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved(5) Length inaccuracy can be amended easily. (6) Control panel: Button-type switch and touch screen(7) Unit of length: Millimeter (switched on the control panel)D: Hydraulic station1: Hydraulic station power: 3kw2: Hydraulic pleasure: 12MpaE: Manual out table: (1)Jointed by 60mm*40mm tube(2)Size: 1.0m long*0.8mwide*0.6-1mhigh(3)One out table with two support roller
