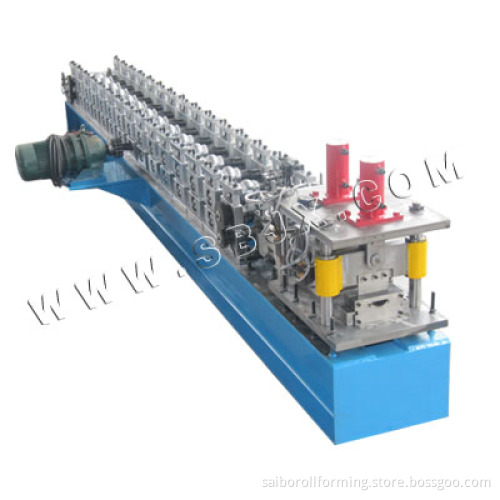

Garage Door Forming Machine

Product name: Garage door roll forming machine

Description:

Main technology parameter:
1: coil width: depend on customer request profile
2: working speed: 12m—15m/min (not contain cutting)
3: roll station: 14 stations
4: material of roller: 45forge steel, polished and coated with chrome
5:material of main shaft:45forge steel   diameter roller: 56mm
6: main power: 4kw
7: forming thickness: 0.5mm—1.2mm color steel and galvanized steel
8: transmission: by single chain 1 inch
9:Cutting:
(1)Cutting after forming: Cut the sheet after roll forming to required length
(2)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(3)Material of blade: CR12with heat treatment
(4)Length measuring: Automatic length measuring
(5)Tolerance of length: +/- 1.5mm
