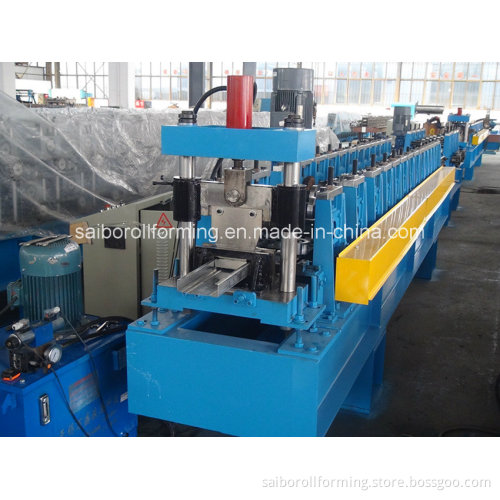

Beam Roll Forming Machine (for upright machine)

Main technology parameter: 1: This machine can produce 4 different sizes2: Working speed: 20m/min (not contain cutting)3: Roll station: 14stations4: Material of roller: 45#forge steel, polished and coated with chrome5: Material of main shaft: 45forge steel diameter roller: 76mm6: Main power: 11kw7: Forming thickness: 1.5mm-2mm8: Transmission: By Chains9: Cutting: (1)Adopt hydraulic cutting(2)Cutting after forming: Cut the sheet after roll forming to required length(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. (4)Material of blade: CR12with heat treatment(5)Length measuring: Automatic length measuring(6)Tolerance of length: +/- 1.5mm
