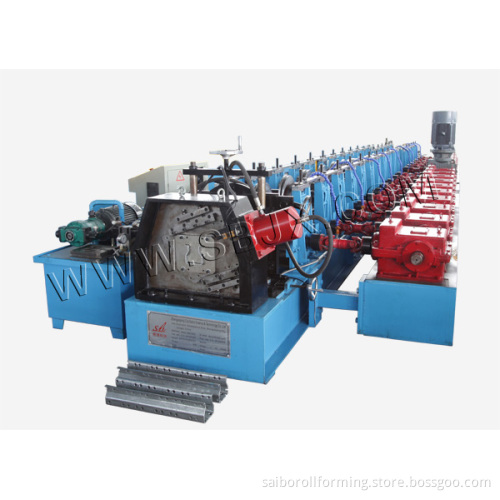

Upright Roll Forming Machine (two sizes)

Upright Roll Forming Machine (two sizes)

Get Latest Price

Payment Type:: L/C, T/T, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China
Payment Type:	L/C, T/T, Money Gram, Western Union

Product Description

Main technical specification:

1: frame: adopt Q235 steel welding
2: base on customer this machine with cooling system
water pump: 1.5KW
spout: every two station have one spout
water box which can make water can circulate working: one piece

3: profile details:

100x100 upright roll forming machine
Thickness: 3.0mm steel type ASTM A570 Gr45
Coil width: 319mm

120x100 upright roll forming machine
Thickness: 3.0mm steel type ASTM A570 Gr45
Coil width: 339mm
4: roll station: 18 stations
5: material of roller: Gcr15 steel, polished and coated with chrome HRC58-60°
6:material of main shaft:45forge steel diameter roller: 65mm

7: working speed:
12m/min (include punching and cutting, length in≥3m)
Maximal speed in 30m/min (not include punching and cutting)
8: main power: 18.5KW, motor fix in side to save space, Siemens brand
9: Transmission: by gear box for each station
10: Sprocket wheel: 1 inch 19 teeth, HRC 58-60°
11: feeding and guide: surface polished and coated with chrome, feeding size is adjustable by hand wheel
12: machine adopts protect cover to protect operator's safe
13: machine structure: cast iron structure
14: Voltage, Frequency, Phase: 380 V, 60 Hz, 3Phase
15: how to change the width 100mm to 120mm.
Change the rings between the rollers.
Change the cutting blade
