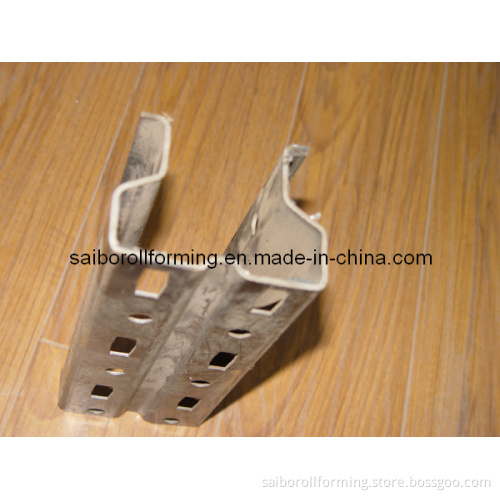

Storage Rack Beam Roll Forming Machine

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

Main technology parameter: 1: Coil width: 254mm2: Working speed: 20m/min (not contain punching and cutting)3: Roll station: 24stations (include 7 stations for leveling sheet)4: Material of roller: 45#forge steel, polished and coated with chrome5: Material of main shaft: 45forge steel diameter roller: 76mm6: Main power: 18.5kw7: Forming thickness: 1.5mm-3mm8: Transmission: By Chains9: Cutting: (1)Adopt hydraulic cutting(2)Cutting after forming: Cut the sheet after roll forming to required length(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. (4)Material of blade: CR12with heat treatment(5)Length measuring: Automatic length measuring(6)Tolerance of length: +/- 1.5mm
