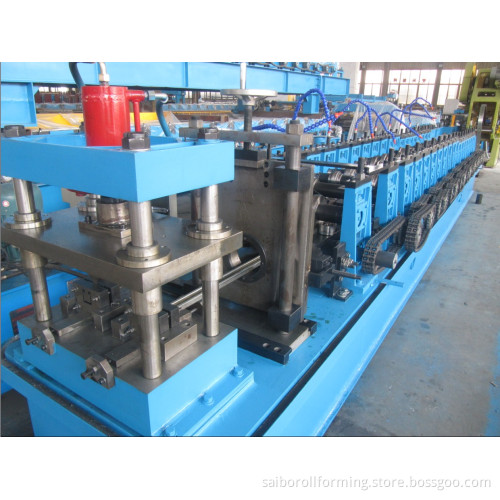

Guide Rail Roll Forming Machine (Double Row)

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

main motor power: 15kw
Decelerating motor: BWD14-43-15kw, made in Shanghai or
Changzhou

drive: by chain
The thickness of the sheet: 2.0-2.5mm
main shaft dia: 65mm material: 45forge steel
roller material: GCR15 quenched 58°-62°, chromed
roll station: 16 stations
Timing by transducer: 5m--8m/min(including punching time)
Transducer: Panasonic made in Japan. 380V 50Hz
Computer: PLC
Computer operating panel: touching screen
Structure: cast iron
Revising station: 1 stationmaterial: ASTM52100 polished and coated with chrome HRC58-62°
