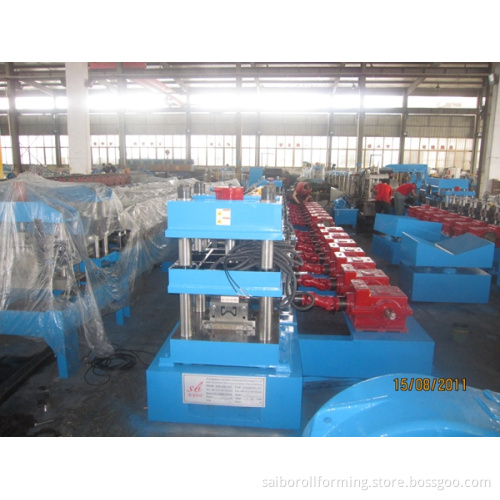

M Shaped Roll Forming Machine (YX55-100)
  • M Shaped Roll Forming Machine (YX55-100)
  • M Shaped Roll Forming Machine (YX55-100)
  • M Shaped Roll Forming Machine (YX55-100)
  • M Shaped Roll Forming Machine (YX55-100)
M Shaped Roll Forming Machine (YX55-100)
M Shaped Roll Forming Machine (YX55-100)
M Shaped Roll Forming Machine (YX55-100)
M Shaped Roll Forming Machine (YX55-100)

M Shaped Roll Forming Machine (YX55-100)

Get Latest Price
Payment Type:
L/C, T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Jiangsu, China
Payment Type: L/C, T/T
Product Description
Product Description
 Details of each composition
A: Roll forming main machine
1: Coil width: 247mm
2: Working speed: 12m/min
3: Roll station: 15 stations
4: Material of roller: Gcr15 forge steel, polished and coated with hard chrome HRC58-60
5: Material of main shaft: 45forge steel diameter roller: 100mm
6: Main power: 37kw
7: Forming thickness: 3mm_4.5mm galvanized steel or metal sheet
8: Transmission: By gear (surface of the gear HRC 50-55)
9: Dimension of the body machine: : 11000× 1000× 1200mm
10: Weight of machine: About 10000kg

B: Cutting system
(1)Machine adopt hydraulic after cutting.
(2)Cutting after forming: Cut the sheet after roll forming to required length
(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4)Material of blade: CR12with heat treatment
(5)Length measuring: Automatic length measuring
(6)Tolerance of length: 3m +/- 1.5mm

C: Punching system
1: Base on customer profile this machine need one punching unit
2: Machine will adopt hydraulic pre-punching
3: Punching mould material: Cr12
4: Punching pressure: 20Mpa
5: Punching distance is controlled by PLC control system

D: PLC control system Panasonic
(1)Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
(2)Automatic length measurement:
(3)Automatic quantity measurement
(4)Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
(5)Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7)Unit of length: Millimeter (switched on the control panel)

E: Hydraulic station
1: Hydraulic station power: 5.5kw
2: Hydraulic pressure: 20Mpa
