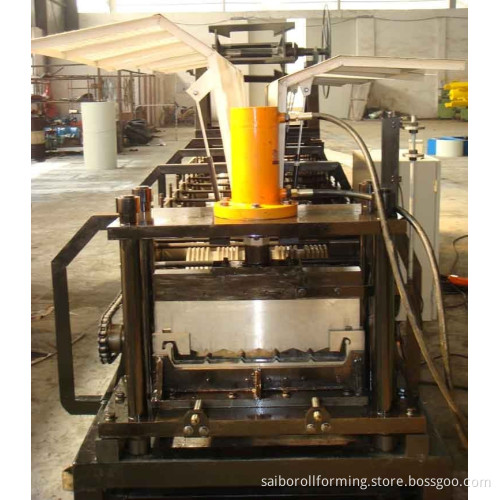

Roll Forming Machine (YX63.5-333 (400, 500))

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

Main technology parameter:1: Raw material (mm): 500mm, 570mm, 670mmEffective width: 610mm: 333mm, 400mm, 500mm2: Working speed: 15-20m/min (not contain cutting)3: Roll station: 17stations4: Material of roller: 45# forge steel, polished and coated with chrome5: Material of main shaft: 45forge steel6: Main power: 5.5kw7: Hydraulic station power: 2.2kw8: Hydraulic pressure: 12Mpa9: Control system: PLC, Panasonic10: Material of cutting: Gr12MOV HRC 58-6011: Thickness: Steel (0.6-1.0mm), Aluminium(0.6-1.2mm)12: Way of drive: Single row of chain: 1.5inch
