Door Frame Automatic Roll Forming Machine

Get Latest Price

Payment Type:: L/C, T/T, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China
Payment Type:	L/C, T/T, Money Gram, Western Union

Product Description

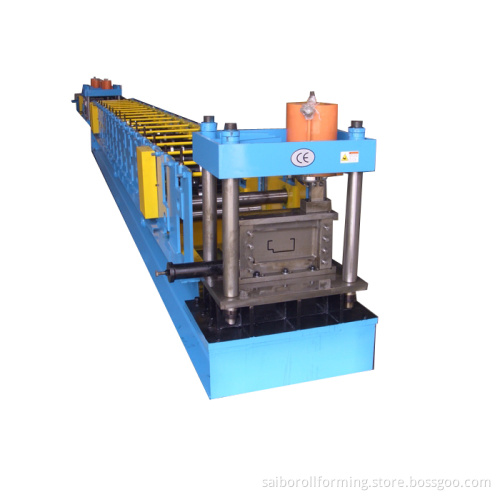

Door frame automatic roll forming machine
A: Simple structure and beautiful outlook;
B: Easy to install and to operate

Detailed Description
1: Feeding width size of sheet (mm): 65-325mm
2: Working speed: 3-4m/min (include cutting and punching time)
3: Roll station: 23stations (7 station is for leveling)
4: Material of rollsCr12, polished and coated with chrome HRC58-62
5: Main shaft: High quality 45# high carbon steel, 75mm
6: Main power:15 kw
7: Hydraulic station motor power: 5.5kw
8: Hydraulic pressure: 20 Mpa
9: Electrical control system: PLC control OMRON Panasonic
10: Dimension of the body machine: 10500× 1200× 1200mm
11: Material of cutting: Cr12MOV
12: Thickness: 1.2mm---2.0mm
