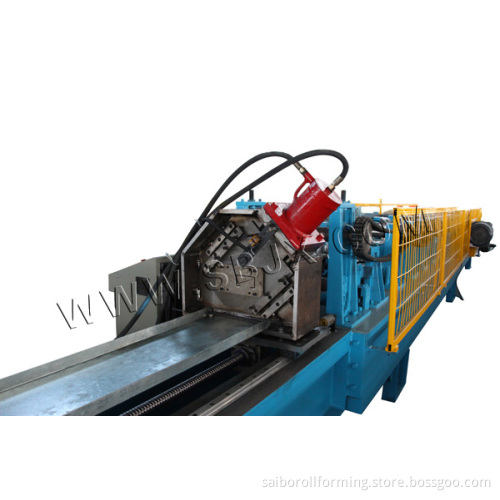

C Track Cutting Roll Forming Machine

Get Latest Price

Payment Type:: L/C, T/T, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China
Payment Type:	L/C, T/T, Money Gram, Western Union

Product Description

Main technical parameters:
1. Roll forming machine: C Purlin
2. How to change the size:automatically changing the sizes, manually changing the cutting mould
3. Line speed:30m/min It can produce 5 pieces of product in 1 minute ( Product length is 6m)
4. Rolling thickness:0.6-2mm
5. Control system:PLC (Panasonic)
6. De-coiler:3 Ton manual un-coiler
7. Leveling station:1 station (7 rollers, upper3 down 4) with 2 feeding stations
8. Roller stations: about 17 stations
9. Changing motor power:1.5 KW (3 sets of motor)
10. Roller material:GCR15 steel, coated with chrome
11. Shaft material and DIA:76mm, material is 45# forge steel
12. Main motor power: 22Kw
13. Hydraulic station power: 11kw
14. Hydraulic pressure: 20Mpa
15. Cutting device: Flying mould cutting, using servo motor driving, servo motor power is 3KW, with linear rail and ball screw
16. Material of cutter: Cr12 quenching 58-62
17. Type of the stations: Cast iron
18. Electric source: 220V-240V, 60HZ, 3 phases
19. Way of drive: 1 inch double rows chain
