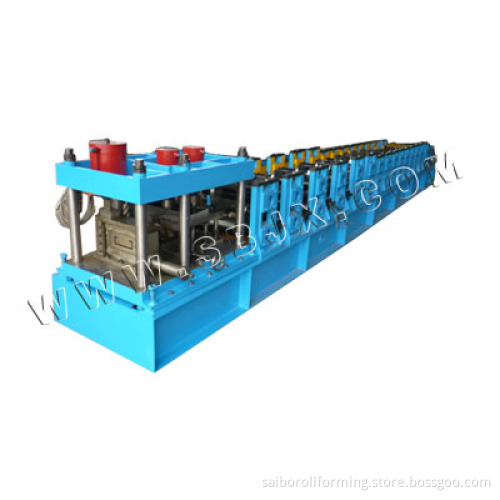

Product name: C purlin roll forming machine
Description:
I: Composition of machine
Roll forming main machine----------------1 unit
Manual Uncoiler-------------------------------1 unit
Control panel----------------------------------1 unit
Hydraulic station------------------------------1 unit
Manual out table-------------------------------2 unit
Spare tools-------------------------------------1 unit

II: Details of each composition
A. Roll forming main machine
1: Coil width: 195mm, 215mm, 265mm
2: Working speed: 12m-15m/min (not include cutting)
3: Roll station:
Roll forming: 14stations (ASTM52100, polished and coated with chrome HRC58-62)
Leveling station: 7 rollers ( up three rollers, down four rollers)
Diameter of roller: 76mm
Material of roller: ASTM1045, polished and coated with chrome HRC58-62
Revising station: 1 station
4: Material of main shaft: ASTM1045
5: Main power: 15kw DC motor
6: Forming thickness: 2mm
7: Transmission: By single line chain 1.5inch
8: Machine adopts new stations to make machine stronger
9: Punching:
Base on customer request this machine needs one set of punching system
Machine adopts hydraulic after cutting
Punching mould: Cr12 HREC58-62
Punching distance is adjustable by computer
10: Size of machine: About 10m*1.5m*1.2m (L x W x H) need one 40GP container
11: Cutting:
(1)Machine adopt hydraulic after cutting
(2)Cutting after forming: Cut the sheet after roll forming to required length
(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4)Material of blade: D2with heat treatment total 3 cutters
(5)Length measuring: Automatic length measuring
(6)Tolerance of length: +/- 1.5mm

B. Uncoiler
Dimensions: 1700mm*1000mm*800mm
Width of feeding: 600mm
Capability: 5 Ton
Bound of expand &fight: 480mm-570mm
Mode of expand &fight: Inner expand &fight by manual
Way of feeding: Manual

C. Control panel Panasonic
(1)Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
(2)Automatic length measurement:
(3)Automatic quantity measurement
(4)Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
(5)Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7)Unit of length: Millimeter (switched on the control panel)

D. Hydraulic station
1: Hydraulic station power: 5.5kw
2: Hydraulic pressure: 20Mpa

E. Manual out table
(1)Jointed by 60mm*40mm tube
(2)Size: 1.0m long*0.8mwide*0.6-1mhigh
(3)One out table with two support rollers
