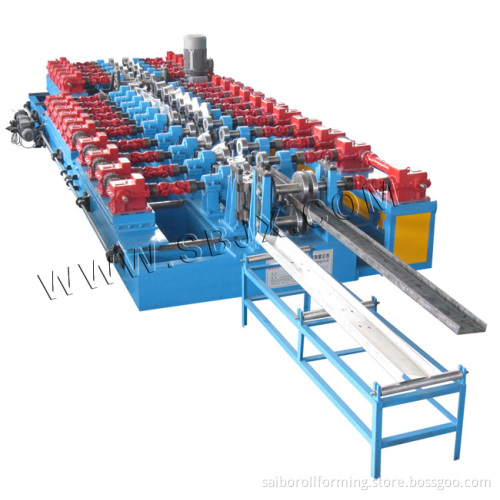

C&Z Purlin Interchangeable Forming Machine by Gearbox and Shaft for Each Station

Get Latest Price

Payment Type:: L/C, T/T, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Money Gram, Western Union

Product Description

1) Production Characteristic and use:
This kind of machine can produce C, Z two profiles, through the exchange side of the roller up and down position to achieve C, Z purlin conversion, just need about half an hour to achieve saving time; This machine also can automatically adjust roller horizontal distance to achieve C or Z purlins of the width with high precision, but also save time to increase production

2) Main Technical Specification:
Thickness: 1.5mm-3.0mm
Speed: 15m/min
Roll station: 18 stations (7 station for straighten)
Main power: 19KW
Hydraulic power: 5.5KW
Control system: PLC Panasonic
Drive: By gearbox and shaft for each station
Automaticity: Semi-automatic / automatic
