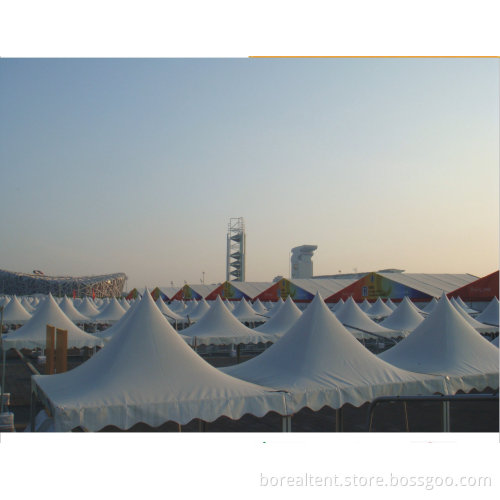

5m Promotion Pagoda Tent (PG-05-05)

1. Application:

The Canopy Tent can be widely used as the weddings, parties, exhibition, conferences, festivals celebrations, cafe shop, restaurants, corporate events, or other events, etc

2. Specification for the Canopy Tent (PAG series):

For details, pls refer to below chart:

Main frame profile size for PAG series: 65*65*2.5mm&122*68*3
Wind load: 100km/h

Minimum tent length: In order to reach the designed wind load and make sure the tent is safety, pls set up the tent with the required minimum tent length.

3. Optional Accessories:

Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, lining, flooring system, clear PVC windows, ramp, transport rack etc

4. Materials:

Fabric: Double PVC coated polyester fabric, 750-900g/sq. M, water proof, UV resistance, fire retardant according to standard NFPA701, CFM & DIN4102 B1/M2

Frame: Hard pressed extruded aluminum 6061/T6, anodized surface finishing.

Connections: Hot-DIP galvanized

5. Color available: White, red, yellow, blue, green, black, grey, transparent etc

6. Products certificate:

Fabric: Test reports for the fire retardant, standards: NFPA701, CFM & DIN4102 B1/M2

Structure safety: Certificates by the registered engineers in the U. S. A & Australia.


Contact us:

Company Name: SUZHOU BR TENT TECHNOLOGY CO.,LTD

Http://www.boreal-china.com

Tel.: 0086 512 5345 6706

Mob: 0086 137 7618 0894

Sales Manager: Shadow Wan

For more information about Pagoda, please feel free to visit our company website.
