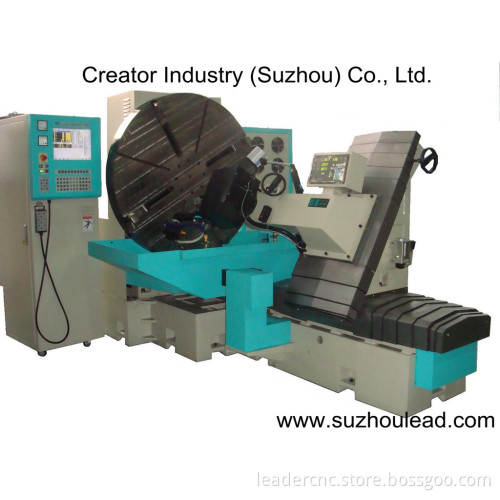

Tire Mold EDM Machine (CNC1670T)

Item: CNC1670TSpecification for machine unit: Model CNC1670TTable travel (X1-axis) mm 70Table travel (Y-axis) mm 700Table travel (Z-axis) mm 180Quill travel (Z1-axis) mm 390Worktable dimension mm 1300C-axis angle degree 360W-axis(Z-axis F/B) revolving angle degree Front 90° /Back 90° Y-axis resolution mm 0.001Z-axis resolution mm 0.001C-axis resolution degree 0.001Control type (C-axis) Fully enclosedW-axis resolution degree 0.05Max. Electrode weight kg 70Max. Workpiece weight kg 2500Max. Workpiece diameter mm 1600Max. Workpiece thickness mm 600( with jigs)Work tank inner dimensions (WxDxH) mm 1560x750x500Oil tank dimensions (WxDxH) mm 3000x900x440Max. Capacity of dielectric fluid liter 950Distance of oil tank up and down mm 280Machine unit weight( including indexing table) kg 4300Max. Machining power A 100Control system CR6C CNC ControllerFeatures of CNC Control: The control employs INTEL PENTIUM industrial grade master board. 15" TFT LCD monitor. Conversational operation interface. Automatic table type editing for 10-step machining programs creation. Tungsten steel, extra hard and special material eroding circuit. Graphite machining circuit is ideal for machining bronze and graphite. MPG handwheel for micrometric positioning adjustment. (Optional)Unlimited machining programs fully meet flexible machining requirements such as various angles and patterns of tire molds. Relative coordinate, absolute coordinate and constant indexing function make the machine suitable for machining any tire mold. Random home position function. Machining home position can be set as desired. Specially designed protection function to prevent electrode from bumping against the mold. Indexing accuracy 0.001° . 13. Allows for inconsistent indexing machining. Standard Accessories: 1. Tool box2. Halogen lamp3. Remote controller4. Filter5. Magnetic nozzle6. Optical scale7. Extended electrode holder8. Operation manualOptional Accessories: 1.4-jaw chuck2. Erowa or 3R chuck3. Oil cooler4. Automatic fire extinguisher5. MPG handwheel box6. Jigs for tire mold7. Grease gun.
