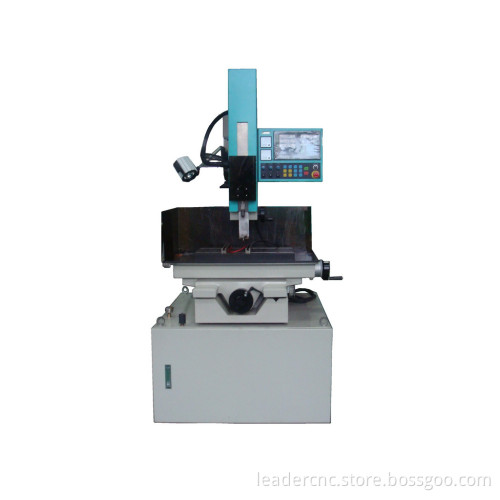

Best-Seller Drilling Machinery /EDM Machine

Specification for machine unit: Model CJ560D Work table dimensions(LxW) mm 880x500 Table travel(X axis) mm 600 Table travel(Y axis) mm 500 Quill travel(Z1 axis) mm 280 Work head travel(Z2 axis) mm 300 Electrode guide travel mm 150 Max. Drilling depth mm 300 Electrode pipe diameter mm 0.3-3.0 Max. Workpiece thickness mm 300 Max. Workpiece weight kg 1100 Dielectric fluid pure water Servocontrol DC servomotor Digital readout X. Y. Z Power supply 3, 380V, 50Hz Input power kVA 3.5 Machine unit dimensions(WxDxH) mm 2650x1900x2300 Machine unit weight kg 2200 Main unit Features: 1. Depth controller (Z axis)2. Overcut (gap) on each side is 0.05~0.2 mm. 3. The use of pure water as working fluids for cost saving and extra safety. 4. Precision (hole straightness) is approx 0.04 mm± 0.02 mm. 5. For drilling 0.3 mm holes, copper is better than brass pipe. 6. Able to drill extremely hard material such alloys etc. 7. Digital readout 3 axis (X, Y, Z). 8. Drilling depth reach to 300mm by electrode O1.0 mm. 9. Able to drill extremely hard material such steel(SKD11, SKD61), Tungsten Carbide, alloys etc...10. Three axes are driven by DC motors. Features stable motion, no noise and high accuracy. Standard accessories: 1. Electrode holder 0.3~3.0 mm. 2. Electrode guide 1.0 mm. 3. Electrode pipe 1.0mm. 4. Tool box & kits. 5. Cotton filter. Optional accessories: 1. Electrical guide 0.3~3.0mm2. Electrical pipe brass 400mm3. Electrical pipe copper 300mm.
