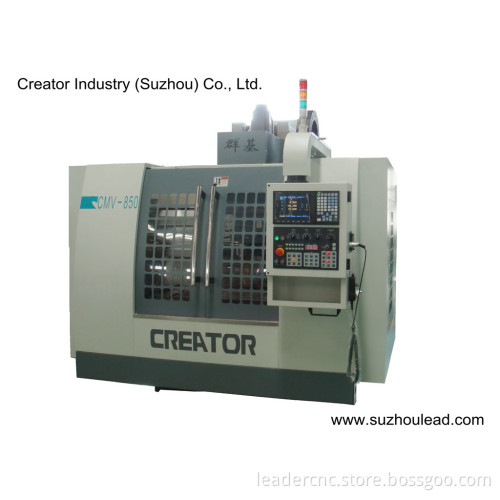

Japan 3D CNC Carving Machine Center Cmv850

ModelCMV-850TRAVELBOX WAYX axis travelmm850Y axis travelmm550Z axis travelmm550Distance from table surface to spindle nosemm120-670TABLETable areamm900 x 530Max. Load of tablekgs1000T-slotmm5 x 18 x 100SPINDLE8000 RPM StandardSpindle taperBT-40Spindle speedrpm8000(10000/12000)Spindle driveBelt typeSpindle motorkw7.5kwSpindle coolingOil coolerFEED RATERapid traverse(X, Y)m/min15Rapid traverse(Z)m/min12Cutting feed ratemm/min1-80003 Axes motor output(X, Y, Z)kw2.0kwA. T. C. Magazine typetypeCarouselArmTool magazine capacitypcs16(20)24Max. Tool diametermm10080/150Max. Tool lengthmm300300Max. Tool weightmm67Tool selectionkgsFixed typeRandomOTHERPower consumptionKVA20Floor space(LxWxH)mm2420 x 2280 x 2520Machine weightkgs6500Unit Features: 1. Increase width on the column bottom, combined with box type structure, greatly upgrades rigidity and stability during machining. 2. Box slide ways on the 3 axes are high frequency hardened. Way surfaces are coated with Turcite-B and precision scraped. 3. Extra wide slide ways and distance between slide ways eliminate sticking problems at low speed travel while ensuring high stability. 4. The major structures are manufactured from Meehanite cast iron with scientific rib reinforcement. This reduces structural deformation to a minimum. Choice of various high speed spindle Belt Drive SpindleChoice 8000, 10000, 12000RPM. Spindle taper BT-40Direct Drive SpindleChoice 10000, 12000, 15000RPM. Spindle taper BT-40Spindle splash ring (Optional): The spindle splash ring is available only for models with arm-type magazine. The device not only effectively removes chips on work piece but also increases work piece cooling efficiency.
