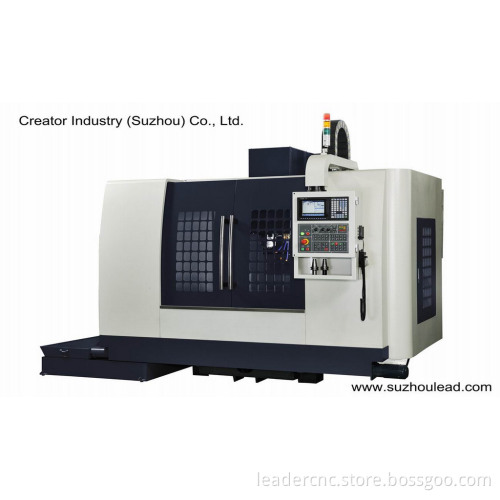

4 Axis CNC Machining Center Chv1020

ModelCHV-1020TRAVELLINEAR GUIDE WAYX axis travelmm1020Y axis travelmm550Z axis travelmm580Distance from table surface to spindle nosemm120~700TABLETable areamm1200x550Max. Load of tablekgs800T-slotmm4 x 18 x 125SPINDLE8000 RPM StandardSpindle taperBT-40BT-40HSK-50ESpindle speedrpm8000/1000010000/12000/1500024000/30000Transmission typeBeltDirect DriveBuilt-inSpindle motorkw7.5/117.5/1115/17Spindle coolingOil coolerFEED RATERapid traverse(X, Y)m/min30Rapid traverse(Z)m/min20Cutting feed ratemm/min1~100003 Axes motor output(X, Y, Z)kw1.8/1.8/2.5A. T. C. Magazine typeCarouselArmTool magazine capacitypcs16(20)24Max. Tool diametermm100/15080/150Max. Tool lengthmm250250Max. Tool weightkgs77Tool selectiontypeFixed typeRandomOTHERPower consumptionKVA20Floor space(LxWxH)mm2940x2180x2350Machine weightkgs6800Unit Features: 1. The major structures are manufactured from Meehanite cast iron, stress relieved and combined with scientific rib reinforcement to ensure deformation-free operations. 2. Increase width on the column bottom with box-type structure provides maximum stability especially when performing high speed cutting. 3. Linear ways on three axes assure high feed rates and extremely smooth motion. 4. Extra wide span between linear ways greatly increases machine stability. 5. The structural parts are analyzed and designed by the advanced Finite Element Analysis. It provides a detailed analysis for structural stress/strain conditions, and ensures excellent machine rigidity and lifetime stability. 6. Linear guide ways: The machine employs 45mm wide ball-type linear guide ways. (Optional)7. Precision ball screw: Three axes are transmitted by high precision C3 grade ball screws, preloaded, hardened and ground-assuring dependable feed accuracy. 8. Choice of 30, 000 rpm high speed spindles are designed for high speed machining requirement. 9. Extra wide column bottom and base ensure simplified machine structure for space saving. 10. The three axes ball screws are directly coupled to servos through backlash-free couplings. This ensures dependable positioning accuracy. High precision class C3 ball screws are preloaded to eliminate thermal strain. CNC Controller: MITSUBISHIM70/M720V FANUC 0I-MD/18iMB/21iMBFAGOR8055mA/8055MB
