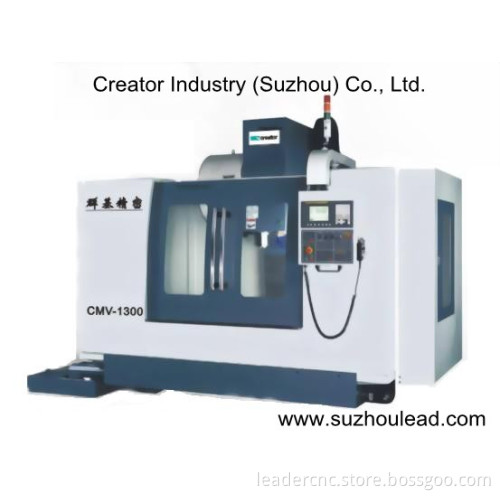

CE/SGS/ISO9001 Hard Rail CNC Machine Center (CMV1300)

Specs: Model CMV-1300TRAVEL BOX WAYX axis travel mm 1300Y axis travel mm 700Z axis travel mm 610Distance from table surface to spindle nose mm 120-720TABLETable area mm 1450 x 650Max. Load of table kgs 1000T-slot mm 5 x 18 x 125SPINDLE 8000 RPM StandardSpindle taper BT-40/BT-50(Opt. )Spindle speed rpm 8000(10000/12000)Spindle drive Gear type/Direct driveSpindle motor kw 11kw/15kwSpindle cooling Oil coolerFEED RATERapid traverse(X, Y) m/min 18Rapid traverse(Z) m/min 15Cutting feed rate mm/min 1-100003 Axes motor output(X, Y, Z) kw 2.7kw / 3.5kwA. T. C. Magazine type type Carousel ArmTool magazine capacity PCS 16(20) 24Max. Tool diameter mm 100/150 80/150Max. Tool length mm 300 300Max. Tool weight mm 7 7Tool selection kgs Fixed type RandomOTHERPower consumption kVA 30Floor space(LxWxH) mm 3650 x 2240 x 2600Machine weight kgs 8000Unit Features: 1. Increase width on the column bottom, combined with box type structure, greatly upgrades rigidity and stability during machining. 2. Box slide ways on the 3 axes are high frequency hardened. Way surfaces are coated with Turcite-B and precision scraped. 3. Extra wide slide ways and distance between slide ways eliminate sticking problems at low speed travel while ensuring high stability. 4. The major structures are manufactured from Meehanite cast iron with scientific rib reinforcement. This reduces structural deformation to a minimum. Standard AccessoriesSpindle oil cooler unitFull splash guardCutting coolant unitHeat exchanger in control boxAuto power offAuto lubrication systemAir blast through spindleWork lampTool box and toolsRigid tappingMechanical, electrical operating manualsRS-232 InterfaceTransformer
