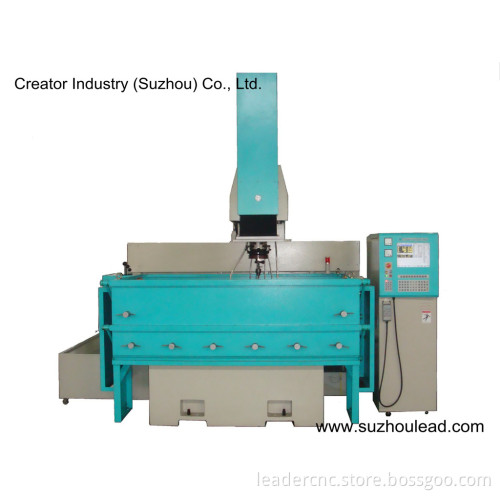

CE/SGS/ISO9001 CNC High Speed Angle Line CNC Machine (CNC1570)

Specification for machine unit: Model Unit CNC1570Table travel(X axis) mm 1500Table travel(Y axis) mm 700Quill travel(Z1 axis) mm -Work head travel(Z2 axis) mm 500Work table dimensions(LxW) mm 1600x900Distance between plate and table mm 596-1084Work tank inner dimensions(WxDxH) mm 2150x1150x700Max. Capacity of dielectric fluid Liter 2300Max. Electrode weight kg 200Max. Workpiece weight kg 4000Machine unit dimensions(WxDxH) mm 2500x2500x2040Machine unit weight kg 6190. Main Unit Features: 1. The structural parts are designed and analyzed by applying the advanced Finite Element Analysis(FEA). 2. Precision linear ways on all axis assures smooth movement and high accuracy. 3. All structural casting are made of FC-30 cast iron, tempered and stress relieved for deformation free performance. 4. High precision spindle assembly insures excellent eroding performance. 5. Table surface is hardened and precision ground, assuring high machining accuracy and long service life. 6. Three axes movements are transmitted by precision ball screws. 7. Three axes are driven by DC servo motor. 8. Three axes are equipped with 1 µ Linear scale for closed loop control. 9. Each machine is compensated by laser interferometer, ensuring position reliability and increasing machine efficiency. Controller box features: 1. The controller employs INTEL PENTIUM industrial grade mother board. 2.15" TFT LCD monitor. 3. Conversational man-machine interface. 4. Automatic table type editing for 10-step machining programs creation. 5. Table type program input interface. 6. Selection type 2D/3D orbital setting. 7. Graphic automatic touch mode interface. 8. Tungsten steel, extra hard and special material eroding circuit. 9. MPG handwheel for micrometric positioning adjustment. 10. Isolated modular circuit design increases convenience of maintenance and stability of circuit. 11. Full digital discharge pulse control combined with the use of FPGA extra large IC components. 12. This permits high efficiency discharge pulse control combined with the use of FPGA extra large IC components. 13. Extra hard material discharge circuit is available upon request.
