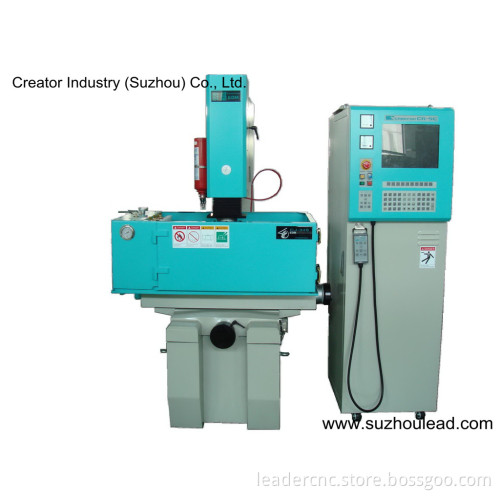

CE/SGS/ISO9001 CNC Electrical Discharge Machine (CJ340)

Specification for machine unit: Model CJ340Table travel(X axis) mm 400Table travel(Y axis) mm 300Quill travel(Z1 axis) mm 220Work head travel(Z2 axis) mm 210Work table dimensions(LxW) mm 700x360Work tank inner dimensions(WxDxH) mm 926x576x394Max. Capacity of dielectric fluid Liter 380Max. Electrode weight kg 75Max. Workpiece weight kg 900Machine unit dimensions(WxDxH) mm 1200x1300x2150Machine unit weight kg 1100. Main Unit Features: 1. CAD design and high precision structure. 2. FC-30 casting made from Furan No-Bake Molding system. 3. Base, Saddle, Column and Spindle are made by synchronous boring to keep theHighest precision. 4. "GRUNDFOS" horizontal pump made in Denmark. 5. Movement surface with TRUCITE. 6. X and Y axes are constructed with V-Shape and Flat sideways7. High precision and strength Quill assures excellent eroding8. Hardness heat treatment and high precision grinding worktable assuresStructure precision and life. Controller box features: 1. Pentium PC-base CNC controller(CR5C). 2.15 inch color monitor(CR5C). 3. Dialogue Operation Box(CR5C)4. Z axis automatic touch touch and reset zero function(CR5C). 5. Digital control panel with 3 axes digital display(CR5). 6. Ten groups of eroding parameters in the memory mode. 7. Ten-step depth eroding parameters from rough to fine finish. 8. Automatic save eroding parameters after electricity power off. 9. ARC prevention system. 10. Alarms system can indicate what the alarm happens and stop the machine to prevent from the damages. 11. Special electrical circuit design for mirror finish, and cutting tungsten carbide.
