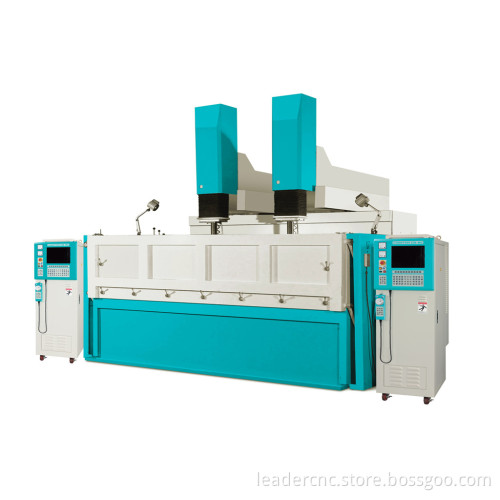

Double Head/Quill EDM Machine

Specifications of power supply unit: Model CR6C Specification 50A 75A 100A # 150A # 250A # Input voltage 3 V 220.346 220.346 220.346 220.346 220.346 380.415 380.415 380.415 380.415 380.415 Input power kVA 7 10 15 20 30 Working voltage(No load) V 100 100 100 150 250 High voltage V 140 or 250 140 or 250 140 or 250 140 or 250 140 or 250 Min. ON TIME µ S 1 1 1 1 1 Min. OFF TIME µ S 1 1 1 1 1 Max. Cutting speed mm3/min 480 720 1050 1500 2500 Best surface finish µ MRa. 0.2 0.2 0.2 0.2 0.2 Min. Electrode wear rate % 0.3 0.3 0.3 0.3 0.3 Weight kg 210 248 360 490 700 # One extra power unit. Continuing improvement will allow the maker to modify the design or specification without notice. Specification for machine unit: Model Unit CNC1570 Table travel(X axis) mm 1500 Table travel(Y axis) mm 700 Quill travel(Z1 axis) mm - Work head travel(Z2 axis) mm 500 Work table dimensions(LxW) mm 1600x900 Distance between plate and table mm 596-1084 Work tank inner dimensions(WxDxH) mm 2150x1150x700 Max. Capacity of dielectric fluid Liter 2300 Max. Electrode weight kg 200 Max. Workpiece weight kg 4000 Machine unit dimensions(WxDxH) mm 2500x2500x2040 Machine unit weight kg 6190 Main Unit Features: 1. The structural parts are designed and analyzed by applying the advanced Finite Element Analysis(FEA). 2. Precision linear ways on all axis assures smooth movement and high accuracy. 3. All structural casting are made of FC-30 cast iron, tempered and stress relieved for deformation free performance. 4. High precision spindle assembly insures excellent eroding performance. 5. Table surface is hardened and precision ground, assuring high machining accuracy and long service life. 6. Three axes movements are transmitted by precision ball screws. 7. Three axes are driven by DC servo motor. 8. Three axes are equipped with 1 µ Linear scale for closed loop control. 9. Each machine is compensated by laser interferometer, ensuring position reliability and increasing machine efficiency. Applications: 1. Precision tungsten steel moulds. 2. Injection moulds. 3. Mirror-finish injection moulds. 4. Electronic parts moulds. 5. Die casting moulds. 6. Progressive IC punching moulds.
