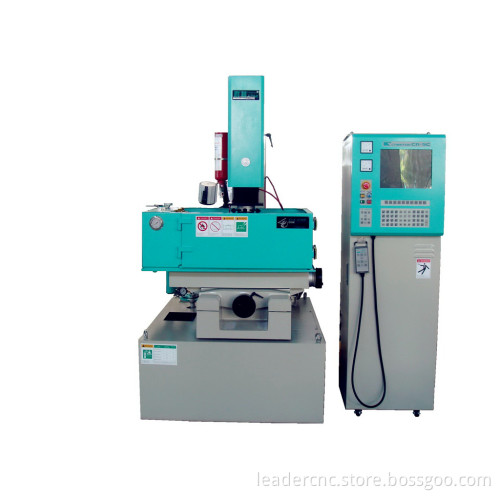

Whole New CNC EDM Machine/Electrical Discharge Machine (CJ235)

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Western Union

Product Description

Specification for machine unit: Model CJ235 Table travel(X axis) mm 350 Table travel(Y axis) mm 250 Quill travel(Z1 axis) mm 175 Work head travel(Z2 axis) mm 210 Work table dimensions(LxW) mm 600x320 Work tank inner dimensions(WxDxH) mm 826x552x344 Max. Capacity of dielectric fluid Liter 500 Max. Electrode weight kg 50 Max. Workpiece weight kg 500 Machine unit dimensions(WxDxH) mm 1200x1400x2100 Machine unit weight kg 1000 Main Unit Features: 1. CAD design and high precision structure. 2. FC-30 casting made from Furan No-Bake Molding system. 3. Base, Saddle, Column and Spindle are made by synchronous boring to keep the Highest precision. 4. "GRUNDFOS" horizontal pump made in Denmark. 5. Movement surface with TRUCITE. 6. X and Y axes are constructed with V-Shape and Flat sideways7. High precision and strength Quill assures excellent eroding8. Hardness heat treatment and high precision grinding worktable assures Structure precision and life.
