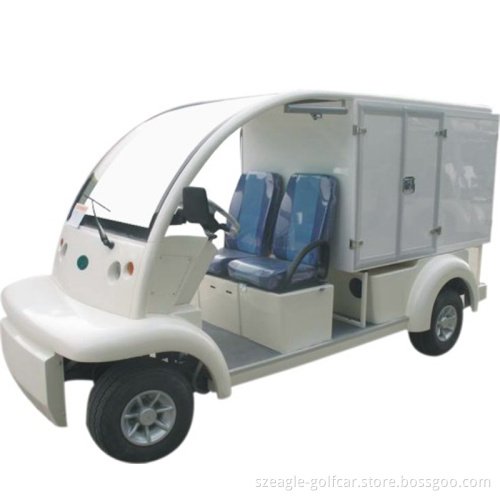

Electric Restaurant Car with Insulating Dining Box

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

This model comes with insulated material container, can be as catering and room service cart in Hotels, Resorts, etc.

Key Components
Controller	Curtis controller, 275A-400A, imported from USA directly
Motor	Rated power 4KW-5KW (5.4HP-6.8HP), Chinese brand or ADC brand
Battery	Trojan battery, T105+, imported from USA directly
Charger	High frequency onboard charger,(input 90V-265V, 47-63HZ, output 48V/22A)
Performance
Passenger Capacity	2
Range (loaded) (km)*	up to 90
Max.speed (km/h)	up to 40
Min.turning radius (m)	4
Max.climbing ability(loaded)	up to 20%
Max. movement after brake at speed of 20km/h	≤4m
Max.loading weight (kgs)	530
Charging time (hour)	810
Battery lifespan (cycles)	750
Dimensions
Overall dimensions (mm)	3750x1400x1810 (LxWxH)
Rear dining box dimension (mm)	1156x1110x1064 (LxWxH)
Min.ground clearance (mm)	140
Wheelbase (mm)	2450
Front wheel tread (mm)	1160
Rear wheel tread (mm)	1150
Body and Frame
Frame & Chassis	Welded steel framework with sand blasting and painting
Body	FRP and Plastic
Roof	FRP with steel frame, with roof handle
Windshield	Laminated glass with wiper
Roof supports	Steel
Seat	Reborn sponge with artificial leather, high back, with formed armrest
Rear dining box	Inside STS, outside galvernized steel, with sliding shelf, with insulating function
Floor	Bamboo floor with Skidproof leather
Dashboard	FRP, with F/R switch, emergency light switch, digital meter, combination switch, storage box (2), etc..
Side rear view mirror	2pcs
Electric System
Lights	12V, headlight, front turning light, taillight (brake light and rear turing light)
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	including switch for headlight, turning light, wiper and horn
DC/DC converter	48V/12V
Digital Meter	with Current meter, voltometer, speedometer, odometer and various indicators
Audio system	Radio with MP3 receiver and 2 waterproof speaker
Steering & suspersion
Steering System	Single-stage rack and pinion steering system,with automatic compensation function
Brake System	4-wheel hydraulic drum brake with hand park brake
Accelerator	Resistance type, stepless speed change
Front suspension	Independent suspension
Rear suspension	integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, steel differential case, 12.49:1 gear ratio
Wheel & Tyre	20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap
