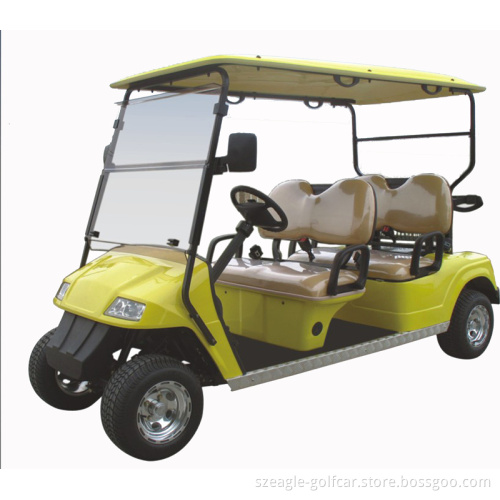

Golf Buggies, 4 Seats, Electric, Eg2048k, CE, Regen Brake

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

Model EG2048K

System 48V/3KW Sepex

Key Components

Battery6xT875(145Ah @5hr rate)

3KW ADC motor

ControllerCurtis 1266 (275A@2minutes)

Performance

Passenger capacity 4

Range (loaded) based on flat road at a speed of 20km/h (km)^*>60

Max. speed @12.49:1 gear ratio25

Max. speed @10.25:1 gear ratio32

Minimum turning radius (m)4.5

Max. climbing ability (loaded) @ 12.49:1 gear ratio20%

Max. climbing ability (loaded) @ 10.25:1 gear ratio15%

Max. movement after brake at speed of 20km/h≤4m

Max. loading weight320kgs

Net weight500kgs

Dimensions

Overall dimensions (mm) 3110X1180X1890

Min. ground clearance (mm)120

Wheelbase (mm) 2450

Front wheel tread (mm)855

Rear wheel tread (mm)975

Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration)

Body and Frame

FrameWelded steel framework with phosphate+electro-coating treatment

BodyPP plastic front body + PP plastic rear body S

RoofFibreglass S

Windshieldone-piece Organic glass S

Windshield, hinged O

Laminated windshield O

Laminated windshield with wiper O

Stainless steel packageincluding front upright, rear upright, sweater basket and bracket O

Aluminum roof supportincluding front upright, rear upright, sweater basket and bracket O

2point seat belt\ O

Large Seats:

1) backrest and cushionRebond seat + artificial leather S

2) armrestFormed S

3) plastic seat bottomSecond row of seat S

Formed seat&backrest vinylexclude the front seat cushion O

Backrest cover in wood finish\ O

Floorrubber S

Center storage basketLarge volume S

Golf bag holder\ S

Dashboard in black plasticforward/reverse switch, battery capacity indicator, ignition key S

Dashboard in wood finish\ O

Steering wheel in wood finish\ O

Beverage holders 4 cups drink holders S

Glove box\ S

Glove box door (include two locks) in black plastic2 doors per set O

Glove box door (include two locks) in wood finish (inside and outside)2 doors per set O

Side trimAluminum S

Score card holderon steering wheel S

Towing bracket on front of golf car S

Inner rear view mirror1 piece per cart in the middle of the windshield O

Side rear view mirrorTwo pieces per cart O

Enclosure\ O

Electric system

Lighting system and horn2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. S

Reversing alarm\ S

Meter (only available for 48V system)speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicatorO

12V accessory plugto be mounted on the dashboard O

Hour meter\ O

Solar Panel48V, 185W O

Cooler12V DC, 6L O

ChargerChina origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A S

On-board charger, input 85V~265V, 45~65Hz, output 36V/21A, 48V/18A O

Steering and Suspension

Steering systemSingle-stage rack and pinion steering system, automatic rocker compensating function S

Right hand drive system\ O

Brake systemMechanical brake S

4-wheel hydraulic brake + hand brake O

4-wheel hydraulic brake, front disc brake, rear drum brake O

AcceleratorStepless speed change S

Suspension systemFront and rear plate spring + cylinder hydraulic shock absorber S

Driving modeRear axle two stage deceleration, motor direct driving S

Rear axleIntegrated, Gear ratio12.49:1 S

Integrated, Gear ratio10.25:1 O

Wheel & Tyre10x6 Alumimum wheel & 205/50-10 4PR S

6J-10 steel wheel with cap & 205/50-10 4PR O

8*7 steel wheel with cap & 18*8.5-8 6PR O
