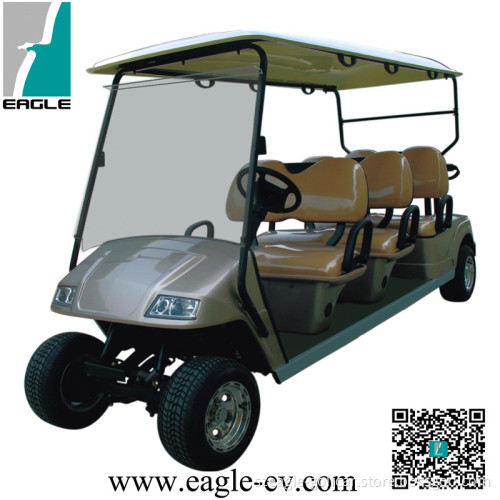

Golf Carts, Electric, 6 Seats, Eg2068k

EG2068K, 6 seats golf car, very competitive price, 5KW motor, 8pcs 185Ah T105 battery, 400A controller, 70kms+ range, 20% climbing ability

Frame
Body
Roof
Windshield



Stainless steel package
Aluminum roof support
2point seat belt
Large Seats:
1) backrest and cushion
2) armrest
3) plastic seat bottom
Formed seat&backrest vinyl
Backrest cover in wood finish
Floor
Dashboard in black plastic
Dashboard in wood finish
Steering wheel in wood finish
Beverage holders
Glove box
Glove box door (include two locks) in black plastic
Glove box door (include two locks) in wood finish (inside and outside)
Side trim
Score card holder
Towing bracket
Inner rear view mirror
Side rear view mirror
Battery watering system, 48V system
Battery watering system, 36V system
Manual Pump
Overshadowing Curtain
Enclosure
Electric system
Lighting system and horn
Reversing alarm
Meter(only available for 48V system)
Police Light
12V accessory plug
Hour meter
Cooler
Solar Panel

Item	Description
Controller	Curtis controller, 400A, imported from USA directly
Motor	Rated 4KW-5KW (5.44HP-6.8HP), ADC brand or Chinese brand Both DC motor and AC motor are available
Battery	Trojan battery, T105+, imported from USA directly
Charger	High Frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A)

Performance

Item	Description
Passenger Capacity	6
Range (loaded) (km)*	up to 90
Max.speed (km/h)	up to 40
Min.turning radius (m)	6
Max.climbing ability(loaded)	up to 20%
Max. movement after brake at speed of 20km/h	≤ 4m
Max.loading weight (kgs)	530
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

  2)  Range will vary depending on temperature, grade, payload and driving style.


Dimensions

Item	Description
Overall dimensions (mm)	3860x1180x1890 (LxWxH)
Min.ground clearance (mm)	120
Wheelbase (mm)	3200
Front wheel tread (mm)	855
Rear wheel tread (mm)	975


Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front and rear body cover, injected
Roof	FRP
Windshield	One-piece organic glass (PMMA)
Roof supports	Carbon steel, powder coated, black
Cushion	Reborn sponge with artificial leather and plastic bottom cover
Backrest	Reborn sponge with artificial leather and plastic cover
Armrest	Formed
Floor mat	Skidproof rubber
Centre sweater basket	Carbon steel, large volume
Golf bag holder	Steel support with nylon strap
Dashboard	Black plastic, with F/R switch, battery power indicator, ignition key on it
Beverage holders	4 cups holders, 2 big and 2 small
Side trim	Extruded aluminum
Score card holder	On the steering wheel




Electric System

Item	Description
Lights	12V, headlight, front turning light, taillight (brake light and rear turing light)
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	\
DC/DC converter	48V/12V
