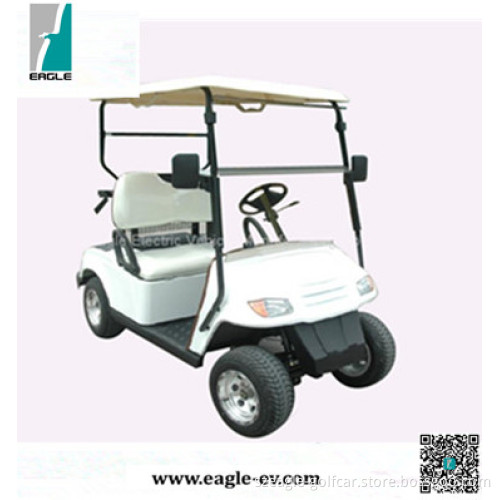

Electric Golf Car, 2 Seats, Battery Powered

Electric Golf Cart, 2 seats, battery powered, curtis controller, trojan battery

Large Seats:
1) backrest and cushion
2) armrest
3) plastic seat bottom
Formed seat&backrest vinyl
Backrest cover in wood finish
Floor
Center storage basket
Golf bag holder
Dashboard in black plastic
Dashboard in wood finish
Steering wheel in wood finish
Beverage holders
Glove box
Glove box door (include two locks) in black plastic
Glove box door (include two locks) in wood finish (inside and outside)
Side trim
Score card holder
Towing bracket
Inner rear view mirror
Side rear view mirror
Battery watering system, 48V system
Battery watering system, 36V system
Manual Pump
Enclosure

Key components
Battery	Deep cycle, lead acid battery, Trojan brand, imported
Motor Power	3KW, 3.8KW, 5KW,   DC / AC
Controller	Curtis brand, Separately excited, imported
Performance
Passenger capacity	2
Range (loaded)*	> 60--100 depends on battery setup
Max. speed (KM)	21-40 depends on motor and rear axle setup
Minimum turning radius (m)	3
Max. climbing ability	25%
Max. loading weight	270kgs
Overall dimensions (mm)	2350X1180X1800
Body and Frame
Frame	Welded steel  framework with phosphate+electro-coating +powder coating treatment
Body	PP plastic front body + PP plastic rear body
Roof	injected plastic
Windshield	one-piece Organic glass
Large Seats:	Rebond seat + artificial leather, formed armrest, plastic seat bottom
Floor	rubber
Dashboard in black plastic	forward/reverse switch, battery capacity indicator, ignition key
Beverage holders	4 cups drink holders
Electric system
Lighting system and horn	2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V/36V to 12V), horn. Reversing alarm
Charger	input 110V-240V~50Hz-60Hz, output 36V/48V, 25A/22A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Rear wheel mechanical brake + foot park brake+ regenerative brake
Accelerator	Stepless speed change
Suspension system	Front and rear plate spring + cylinder hydraulic shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated
Wheel & Tyre	10x6 Alumimum wheel & 205/50-10 4PR
