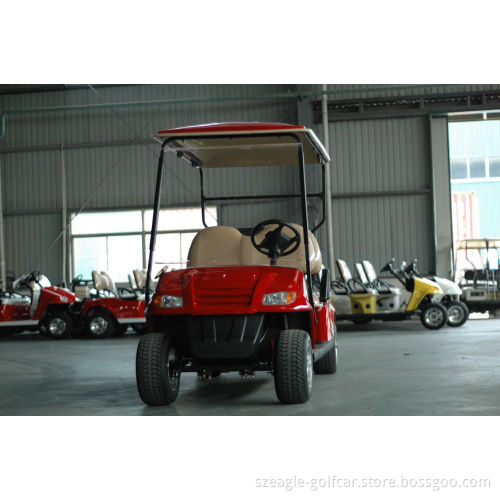

Four Seats Electric Golf Carts (USA LSV available, CE)

Performance

Passenger capacity 4
Range (loaded) based on flat road at a speed of 20km/h (km)* >80
Max. Speed @12.76: 1 gear ratio 32
Max. Speed @10.26: 1 gear ratio 40
Minimum turning radius (m) 3.5
Max. Climbing ability (loaded) @ 12.76: 1 gear ratio 20%
Max. Climbing ability (loaded) @ 10.26: 1 gear ratio 15%
Max. Movement after brake at speed of 20km/h ≤ 4m
Max. Loading weight 370kgs
Net weight 580kgs

Dimensions

Overall dimensions (mm) 3110X1180X1890
Min. Ground clearance (mm) 120
Wheelbase (mm) 2450
Front wheel tread (mm) 855
Rear wheel tread (mm) 975

Body and Frame

Frame Welded steel framework with phosphate+electro-coating treatment
Body PP plastic front body + PP plastic rear body
Roof Injected plastic
Windshield one-piece Organic glass

Option

1. Laminated windshield with wiper
2. Stainless steel package
3. Aluminum roof support
4.2 point seat belt
5. Formed seat backrest vinyl
6. Backrest cover in wood finish
7. Dashboard in wood finish
8. Steering wheel in wood finish
9. Glove box door (include two locks) in black plastic
10. Glove box door (include two locks) in wood finish (inside and outside)
11. Inner rear view mirror
12. Side rear view mirror
13. Battery watering system, 48V system
14. Manual Pump
15. Enclosure
16. Meter(only available for 48V system)
17. Police Light
18.12V accessory plug
19. Hour meter
20. Solar Panel
21. On board charger
22. Right hand drive system(NO extra cost)
23.4-wheel hydraulic brake + hand brake
24.4-wheel hydraulic brake, front disc brake, rear drum brake
25. Rear axle: Integrated, Gear ratio 10.26: 1
26. Customized color is available, but extra cost should be paid
