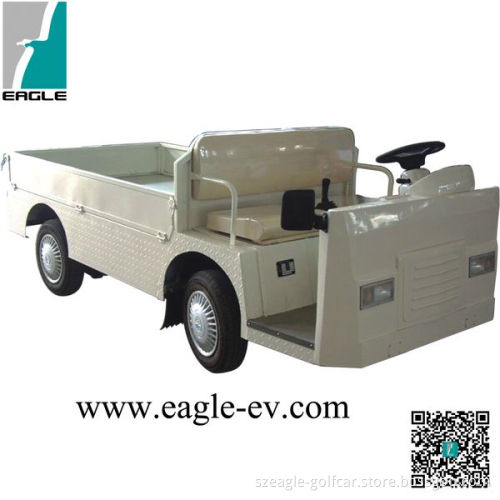

Electric Burden Carrier, 800kgs Loading Capacity, Eg6021h

Performance

Item	Description
Passenger Capacity	2
Range (loaded) (km)*	up to 60
Max.speed (km/h)	up to 40
Min.turning radius (m)	4.3
Max.climbing ability(loaded)	up to 20%
Max. movement after brake at speed of 20km/h	≤4m
Max.loading weight (kgs)	800
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
  2)  Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Item	Description
Overall dimensions (mm)	3415x1390x1200 (LxWxH)
Rear cargo bed dimensions (mm)	2110x1370x260 (LxWxH)
Min.ground clearance (mm)	160
Wheelbase (mm)	1730
Front wheel tread (mm)	1210
Rear wheel tread (mm)	1200


Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with sand blasting and painting
Body	Steel plate
Seat	Reborn sponge with artificial leather, with steel armrest
Floor	Bamboo floor with Skidproof leather
Rear cargo bed	Steel side fender, rear foldable fender, bottom board with plywood+ galvanized steel plate on the top
Beverage holders	1 cups holders
Side rear view mirror	2pcs, one long-arm mirror and one small mirror


Electric System

Item	Description
Lights	12V, headlight (H/L beam), front turning light, Rear taillight (brake light and rear turing light)
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	\
DC/DC converter	48V/12V
Digital Meter	with Current meter, voltometer, speedometer and various indicators


Steering & suspersion

Item	Description
Steering System	Single-stage rack and pinion steering system, with automatic compensation function
Brake System	4-wheel hydraulic drum brake with hand park brake
Accelerator	Resistance type, stepless speed change
Front suspension	Independent suspension
Rear suspension	integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Transmission system	Clutch, 4F+1R gear box, transmission shaft
Wheel & Tyre	4J*12 steel rim, 155R12C 8PR tyre, with wheel cover
