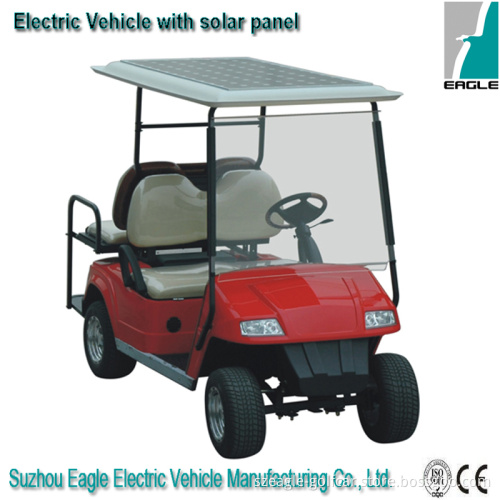

Solar Golf Car with 185W Solar Panel

EG2028KSZ is a electric utility vehicle with jumper seat in the rear. It's modified based 2 seater standard golf cart model EG2028K by replacing the rear golf bag kits with jumper seat. When the rear flip-flop seat is not turned down, it will be used as normal passenger car for carrying people. When the rear flip-flop seat is turned down, it can be used for carrying cargos. It can be widely used in hotel, resort, village, golf course, big factory, airport, station and any closed area.

Battery	Deep cycle, lead acid battery, Trojan brand, imported
Motor Power	3, 3.8KW DC / AC
Controller	Curtis brand, Separately excited, imported
Passenger capacity	2
Range (loaded) based on flat road at a speed of 20km/h (km)	>60--100 depends on battery setup
Max. speed	21-40 depends on motor and rear axle setup
Minimum turning radius (m)	3.5
Max. climbing ability	20%
Max. loading weight	300kgs
Rear box dimensions (mm)	770x1100x250
Overall dimensions (mm)	2670X1180X1890
Body and Frame
Frame	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front body + PP plastic rear body
Roof	injected plastic
Windshield	one-piece Organic glass
Large Seats:	Rebond seat + artificial leather, formed armrest, plastic seat bottom
Floor	rubber
Dashboard in black plastic	forward/reverse switch, battery capacity indicator, ignition key
Beverage holders	4 cups drink holders
Electric system
Lighting system and horn	2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. Reversing alarm
Charger	input 110V-240V~50Hz-60Hz, output 36V/48V, 20A/25A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Mechanical brake
Accelerator	Stepless speed change
Suspension system	Front and rear plate spring + cylinder hydraulic shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated
Wheel & Tyre	10x6 Alumimum wheel & 205/50-10 4PR
Color
Body Color	6 standard color: Pure white/Pure Black/Champagne/Red/Navy Blue/Metallic Green
Seat Color	2 standard color: white and tan
Others
Provides various options like: hinged windshield, wood finish dashboard/backrest cover/steering wheel, onboard charger, STS roof supports, 4-wheel hydraulic brake, enclosure, solar panel, cooler, complete aluminum box, etc..
