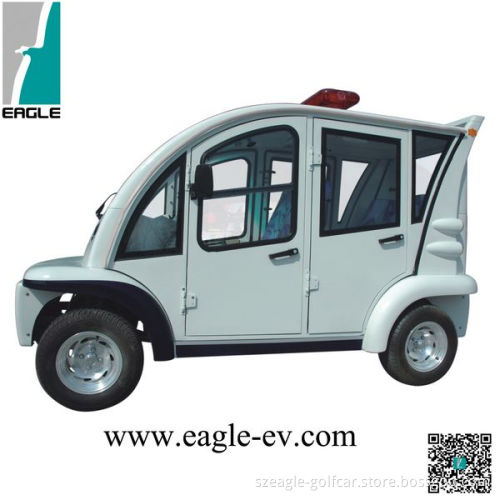

Electric Four Seats Passenger Carrier, People Mover with Hard Door

Get Latest Price

Payment Type:: D/P, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, China
Payment Type:	D/P, Paypal, Western Union

Product Description

electric four seats passenger carrier with hard door

Specifications	Model	EG6043KF
Key Components	Power Source	Pure Electric
	Electric System	48V system(DC Series& Sepex& AC Sepex)
	Battery	Trojan battery
	Motor	Chinese Motor
	Controller	Curtis controller
	Charger	China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A
Performance	Passenger capacity	4
	Range (loaded) based on flat road at a speed of 20km/h (km)*	Up to 65
	Max. speed	Up to 40
	Minimum turning radius (m)	4
	Max. climbing ability (loaded)	Up to 25%
	Max. movement after brake at speed of 20km/h	≤4m
	Max. loading weight	320kgs
Dimensions	Overall dimensions (mm)	3060x1400x1900
	Min. ground clearance (mm)	155
	Wheelbase (mm)	2080
	Front wheel tread (mm)	1210
	Rear wheel tread (mm)	1160
Body and Frame	Frame	Welded steel framework with sand blasting+paint treatment
	Body	Fibreglass
	Roof	Fibreglass+steel frame
Electric system	Lighting system and horn	2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn.
Steering and Suspension	Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
	Brake system	Four wheel hydraulic drum brake+foot parking brake
	Suspension system	Independent suspension, helix spring + shock absorber(FW) & rear plate spring + shock absorber(RW)
	Driving mode	Rear axle two stage deceleration, motor direct driving
	Rear axle	Gear ratio12.49:1
	Wheel & Tyre	225/55b12 6PR tire, 12X7 aluminum wheel
	3point seat belt
	Rain cover
	CD player
	Solar panel
Body Color	Up to 6 kinds of standard color for option
Loading	Both Assembly and Disassembly are available

we can offer many option for your rrefence, Detail you can conuslt with our sales.
