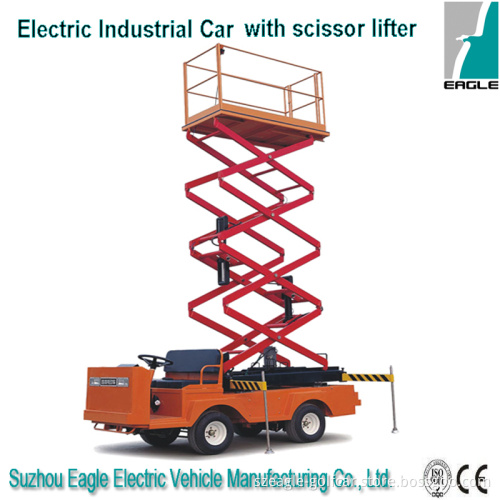

Electric Scissor Lifter with 6m Lifter

Electri scissor lifter EG6060J is built based on standard electric industrial vehicle EG6021H and put a scissor lifter on the rear bed. It's suitable for high altitude operation like change the light on the ceiling, paint the ceiling, paiting the wall etc.. It can move quick than normal scissor lifting table.

Battery	Deep cycle, lead acid battery, Trojan brand, imported
Motor Power	3KW/5KW DC
Controller	Curtis brand, Series excited, imported
Passenger capacity	2
Range (loaded) based on flat road at a speed of 20km/h (km)	>70
Max. speed(km/h)	40
Minimum turning radius (m)	4.3
Max. climbing ability	20%
Max. lifting weight	300kgs
Max. lifting height	6m
Overall dimensions (mm)	3415X1390X1200
Ground Clearance (mm)	160
Body and Frame
Frame	Welded steel framework with sand blasting+paint treatment
Body	Metal+painting
Windshield	Laminated
Large Seats:	Sponge + artificial leather
Floor	Bamboo board+ rubber
Electric system
Lighting system and horn	Front: 2 Headlights, 2 front turn signals;                              Back: 2 rear turn signals, 2 brake lights;                         with DC-DC converter (converting from 48V to 12V), horn.
Dashboard meter	current meter,voltage meter, speedometer
Charger	input 110V-240V~50Hz-60Hz, output 48V, 25A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	4-wheel hydraulic brake + hand brake
Transmission system	Clutch, 4F+1R gear box, transmission shaft
Front Suspension system	independent suspension, cylinder hydraulic vibration absorber
Rear Suspension system	integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Wheel & Tyre	4J*12 steel rim, 145/80-R12 6PR tyre, with wheel cover
Color
Body Color	4 standard color: Pearl white/industrial yellow/pearl red/              saffron yellow
Seat Color	White and Tan
Others
Provides various options like: mirror, cabin, seatbelt
