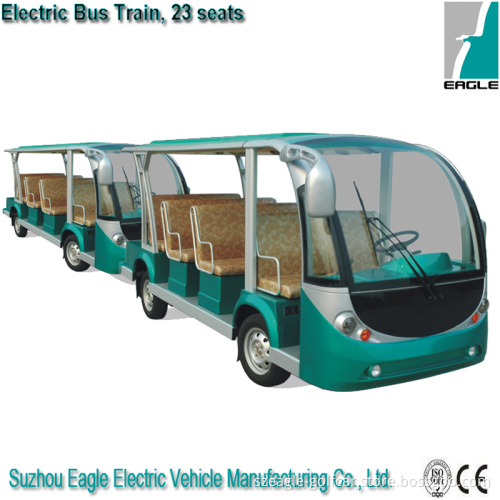

Electric Bus Train, Electric Shuttle Bus with Trailer, 23 Seats, Eg6118tb+Eg6118tb Trailer

Electric bus train, electric shuttle bus with trailer, 23 seats
Description:
23 seats electric bus train, EG6118KB with trailer, 6.3KW or 7.5KW motor, 24pcs batteries, 70kms range, 40km/h speed



Key Components

Item	Description
Controller	Curtis controller, 400A, imported from USA directly
Motor	Rated power 6.3KW (8.6HP)DC or 7.5KW (10.2HP) AC motor, Chinese brand
Battery	Trojan battery, 24pcs, 2 groups, T105+, imported from USA directly
Charger	72V Smart transformed Charger (input 110V-240V, 50-60HZ, output 72V/25A)


Performance

Item	Description
Passenger Capacity	11+12 (front tractor and rear trailer)
Range (loaded) (km)*	up to 75
Max.speed (km/h)	up to 40
Min.turning radius (m)	9
Max.climbing ability(loaded)	up to 15%
Max. movement after brake at speed of 20km/h	≤4m
Max.loading weight (kgs)	1760
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
  2)  Range will vary depending on temperature, grade, payload and driving style.
Dimensions

Item	Description
Overall dimensions (mm)	2x5000x1490x2050 (LxWxH)
Min.ground clearance (mm)	135
Wheelbase (mm)	2710
Front wheel tread (mm)	1222
Rear wheel tread (mm)	1185


Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with sand blasting and painting
Body	Fibreglass(the first seat bottom and dashboard), PP(other seat bottoms and front body)
Roof	FRP with aluminum frame, two layers, with roof handle
Windshield	Laminated glass with wiper
Roof supports	Aluminum
Seat	Reborn sponge with artificial leather, highback
Armrest	Aluminum
Floor	Bamboo floor with Skidproof leather
Beverage holders	1 cups holders
Side rear view mirror	2pcs, one long-arm mirror and one small mirror

Electric System

Item	Description
Lights	12V, headlight (H/L beam), front turning light, front fog light Rear taillight (brake light and rear turing light) and reverse light
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	\
DC/DC converter	72V/12V
Digital Meter	with Current meter, voltometer, speedometer and various indicators
Audio system	Radio with MP3 receiver and 2 waterproof speaker

Steering & suspersion

Item	Description
Steering System	Single-stage rack and pinion steering system, with automatic compensation function
Brake System	4-wheel hydraulic drum brake with hand park brake
Accelerator	Resistance type, stepless speed change
Front suspension	Independent suspension
Rear suspension	integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Transmission system	Clutch, 5F+1R gear box, transmission shaft or automatic drive system (stepless speed change)
Wheel & Tyre	4J*12 Steel wheel & 155R12 tyre, 8PR

Option Accessories
To increase the sales value of our vehicles, we also provide many optional accessories.

Item	Option description	Item	Option description
1	2-point seatbelt	9	Wired microphone
2	Overshadowing Curtain	10	Wiper with water sprayer
3	Enclosure (PVC)	11	Solar panel
4	Inner rear view mirror	12	Right hand drive system (RHD)
5	Battery watering pipe	13	Electrical power steering
6	Water pump (handle)	14	Front disc brake and rear drum brake with vacuum booster
7	License plate light	15	4J*12 Aluminum rim
8	CD player
