Electric Shuttle Bus, 8 Seats, Aluminum Hard Door, Eg6088kf, CE Approved, Brand New

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

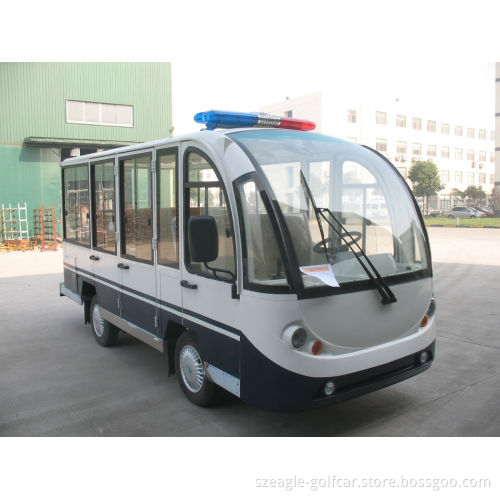

Electric shuttle bus, 8 seats, aluminum hard door, EG6088KF

Description:

EG6088KF, electric bus, 8 seats, with crossion free aluminum hard door, no worry of rain and wind, 5KW motor, max.speed of 42km/h

Key Components

Item	Description
Controller	Curtis controller, 275A-400A, imported from USA directly
Motor	Rated power 3KW (4.08HP) DC,5KW (6.8HP)DC or 7.5KW (10.2HP) AC motor, Chinese brand
Battery	Trojan battery, T105+, imported from USA directly
Charger	72V Smart transformed Charger (input 110V-240V, 50-60HZ, output 72V/25A) 48V high frequence onboard charger (input 90V-265V, 47-63HZ, output 48V/22A)

Performance

Item	Description
Passenger Capacity	8
Range (loaded) (km)*	up to 115
Max.speed (km/h)	up to 40
Min.turning radius (m)	4.5
Max.climbing ability(loaded)	up to 20%
Max. movement after brake at speed of 20km/h	≤4m
Max.loading weight (kgs)	640
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with sand blasting and painting
Body	Fibreglass(the first seat bottom and dashboard), PP(other seat bottoms and front body)
Hard door	All in aluminum, with lock
Roof	FRP with aluminum frame, two layers, with roof handle
Windshield	Laminated glass with wiper
Seat	Reborn sponge with artificial leather, highback
Armrest	Aluminum
Floor	Bamboo floor with Skidproof leather
Beverage holders	1 cups holders
Side rear view mirror	2pcs, one long-arm mirror and one small mirror

Electric System

Item	Description
Lights	12V, headlight (H/L beam), front turning light, front fog light Rear taillight (brake light and rear turing light) and reverse light
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	\
DC/DC converter	48V/12V or 72V/12V
Digital Meter	with Current meter, voltometer, speedometer and various indicators
Audio system	Radio with MP3 receiver and 2 waterproof speaker

Steering & suspersion

Item	Description
Steering System	Single-stage rack and pinion steering system, with automatic compensation function
Brake System	4-wheel hydraulic drum brake with hand park brake
Accelerator	Resistance type, stepless speed change
Front suspension	Independent suspension
Rear suspension	integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Transmission system	Clutch, 4F+1R gear box, transmission shaft or automatic drive system (stepless speed change)
Wheel & Tyre	4J*12 Steel wheel & 155R12 tyre, 8PR

Option Accessories

To increase the sales value of our vehicles, we also provide many optional accessories.

Item	Option description	Item	Option description
1	2-point seatbelt	7	CD player
2	Inner rear view mirror	8	Wiper with water sprayer
3	Battery watering pipe	9	Right hand drive system (RHD)
4	Water pump (handle)	10	Electrical power steering
5	Wired microphone	11	Front disc brake and rear drum brake with vacuum booster
6	License plate light	12	4J*12 Aluminum rim
