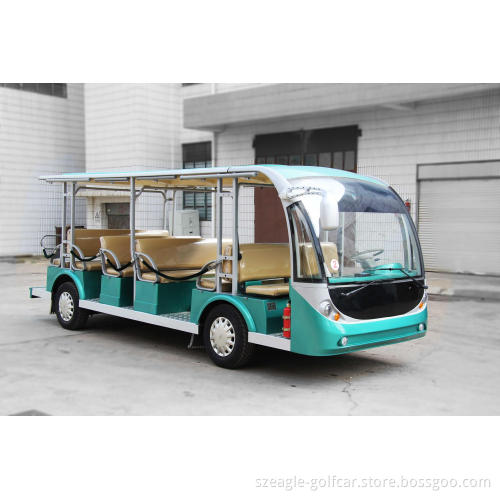

Electric Shuttle Bus, 23 Seats, Eg6230k, CE Approved, Brand New

Electric shuttle bus, 23 seats, EG6230K
Description:
EG6230K, 23 seats electric sightseeing bus, dual 72V system, 24 batteries, 4-wheel hydraulic brake with vacuum booster, electric power steering system

Key Components

Item	Description
Controller	Curtis controller, 400A, imported from USA directly
Motor	Rated power 6.3KW (8.6HP)DC or 10KW (13.6HP) AC motor, Chinese brand
Battery	Trojan battery, 2 groups, 24xT105+, imported from USA directly
Charger	Two 72V Smart transformed Charger (input 110V-240V, 50-60HZ, output 72V/25A)


Performance

Item	Description
Passenger Capacity	23 (15 seats facing forward, 8seats facing backward)
Range (loaded) (km)*	up to 70
Max.speed (km/h)	up to 45
Min.turning radius (m)	6.5
Max.climbing ability(loaded)	up to 20%
Max. movement after brake at speed of 20km/h	≤7m
Max.loading weight (kgs)	1840
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
  2)  Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Item	Description
Overall dimensions (mm)	5950x1950x2170 (LxWxH)
Min.ground clearance (mm)	165
Wheelbase (mm)	3200
Front wheel tread (mm)	1692
Rear wheel tread (mm)	1700


Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with sand blasting and painting
Body	Fibreglass
Roof	FRP with aluminum frame, two layers, with roof handle
Windshield	Laminated glass with wiper
Roof supports	Steel, painted in grey color
Seat	Reborn sponge with artificial leather
Armrest	Steel tube
Floor	Bamboo floor with Skidproof leather
Beverage holders	1 cups holders
Side rear view mirror	2pcs, one long-arm mirror and one small mirror


Electric System

Item	Description
Lights	12V, headlight (H/L beam), front turning light, front fog light Rear taillight (brake light and rear turing light) and reverse light
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	\
DC/DC converter	472V/12V
Digital Meter	with Current meter, voltometer, speedometer and various indicators
Audio system	Radio with MP3 receiver and 2 waterproof speaker


Steering & suspersion

Item	Description
Steering System	Single-stage rack and pinion steering system, automatic rocker compensating function, with hydraulic power assistant steering system
Brake System	4-wheel hydraulic front disc rear drum brake with vacuum booster, with hand park brake
Accelerator	Resistance type, stepless speed change
Front suspension	Independent suspension
Rear suspension	integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Transmission system	Clutch, 5F+1R gear box, transmission shaft
Wheel & Tyre	215/70R15C 8PR tyre, with steel rim



Option Accessories
To increase the sales value of our vehicles, we also provide many optional accessories.

Item	Option description
1	2-point seatbelt
2	Overshadowing Curtain
3	Battery watering pipe
4	Water pump (handle)
5	Aluminum rim
