automated Glass Bottle Wine Filling Machine CE ROHS , Washing Filling Capping machine
Quick Detail:
Driven Type: Electric
Voltage: 110/220/380V
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda
Certification: CE,ISO
Material: stainless steel
Processing: bottle packing machine
Suitable Bottle:Glass Bottle
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Description:
Wine Filling Machine, Glass Bottle Filling Machine, Beer Filling Machine, Alcohol Filling Machine
Product Description:

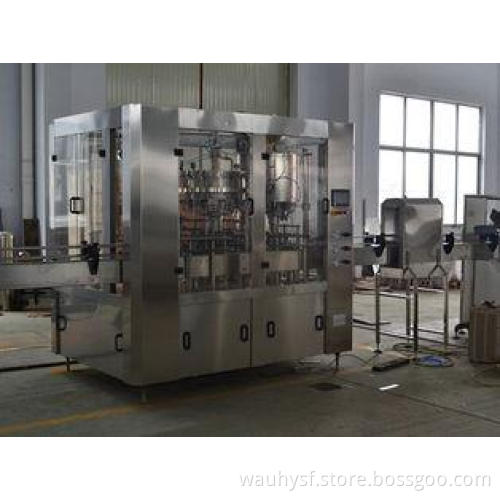

The machine is mainly used in the negative filling operations. The three functions of bottle wash fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in fillingAlcohol Drink,Wine,Vodka,Sauce,Vinegar in bottles made of polyester and plastics.
Applications:
The CGFD series filling machine is specialized in wine filling.
Specifications:
|
Model |
CGFD 8-8-3 |
CGFD 12-12-6 |
CGFD 18-18-6 |
CGFD 24-24-8 |
CGFD 32-32-10 |
CGFD 40-40-10 |
|
Rinsing Head No |
8 |
12 |
18 |
24 |
32 |
40 |
|
Filling Head No |
8 |
12 |
18 |
24 |
32 |
40 |
|
Capping Head No |
3 |
6 |
6 |
8 |
10 |
12/10 |
|
RatedCapacity |
1200-1500BPH |
2500BPH |
3500-4000BPH |
7000-7500BPH |
8000-10000BPH |
10000-12000BPH |
|
Overall Size |
2000*1600* 2300mm |
2200*1600* 2300mm |
2450*1900* 2300mm |
2750*1180* 2400mm |
4000*2300* 2300mm |
4550*2650* 2300mm |
|
Weight |
2T |
2.2T |
3.0T |
4.0T |
8.0T |
12.0T |
|
Power(KW) |
3KW |
3.5kw |
4.0kw |
4.8kw |
7.6kw |
8.3Kw |
|
Rated Voltage |
380V |
380V |
380V |
380V |
380V |
|
