Carbonated Soft Drink Gravity Filling Equipment , Auto Soda

Carbonated Soft Drink Gravity Filling Equipment , Auto Soda Filling Machine 60 Head 20000BPH

Quick Detail:

1. Capacity: 1000-20000bottles per hour

2. Material: The material which contact directly with the liquid is the SUS304 (Food grade), made in china. The transmission mechanism and the gear are equipped with firing A4 carbon steel.

3. The 3-in-1 is mainly used to fill carbonated aerated beverage.

4. Motor: WAN NAN

5. Gear box: JIE BRAND

6. Invert speed control: MITSUBISHI

7. PLC: MITSUBISHI

8. Touch screen: WIEVIEW

9. Electrical parts: DELIX

10. Pneumatic component: DELIXI

11. Volume of PET bottle : 0.25L-2L

12. Diameter of bottle: 50-100mm

13. Height of bottle: 170-320mm

14. Cap diameter: plastic screw type cap diameter Φ30

15. Filling temperature: 3-6 degrees

16. Filling pressure: ≤0.15Mpa

17. Filling precision: ±2-3%

18. Pressure of washing: 0.2Mpa

19. Washing consuming water: 1200kg/h

20. Gas consumption: 0.4m³ /min

Description:

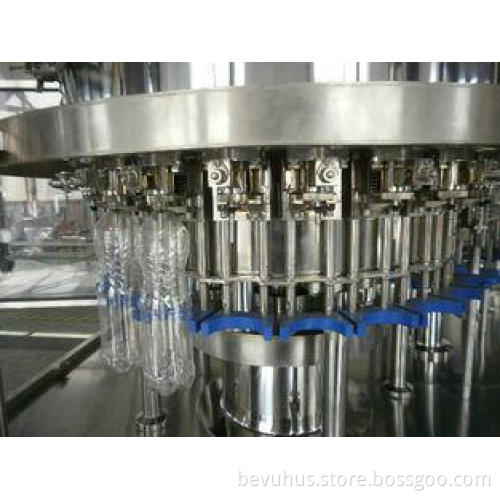

The series Washing-Filling-Capping 3-in-1 Machine is used in production of PET bottle-packing carbonated beverage such as Coca-Cola, containing gas mineral, sprite, containing gas juice etc. The machine combines washing/filling/capping with complete automation, and the filling process adopted the micro-pressure technology, which makes filling prodess faster and more stable. The capacity can be from 2000 to 20000B/H.(washing filling capping)
1. The machine is mainly used in beverage filling operations.

2. The three functions of bottle washing, filling and capping are composed in one body of the machine.

3. The whole machine is automatic.

4. The machine is used to fill carbonated drink in bottles made of polyester and plastic.

5. The machine is convenient to adjust the machine to fill various types of bottles.

6. The filling operation is faster and more stable due to the isobar filling operation of the new type is adopted.

7. The output and benefit of the machine is higher than the machines of the same specification.

8. It is convenient to operate with higher automation due to every parts of the machine is inspected to run with photo electrical detector.

9. The machine is idea-preferred equipment for beverage maker.

washing filling capping monoblock machine/filling machinery/beverage filling machine/gas containing drink washing filling capping three-in-one unit

Specifications:

Automatic Washing-Filling-Capping 3-in-1 Machine for Carbonated Drink--Main data

Competitive Advantage of Washing-Filling-Capping Machine for Carbonated Drink

1.Air Conveyor connects with bottle-in starwheels. Bottle neck holding transferred.

2.Clamp transferring technology varied bottle types.

3.With little abrasion. Stable Transferring. Easy to change bottles.

4.With ring type pressure bearing hydraulic cylinder.

5.With high filling speed and exact liquid level.

6.Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.

7.The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles.

8.Easy to operate and maintain.

9.PLC and transducers and other main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.

Hyford keeps 100% confident and try our best ability to satisfy customers' requirements with their selected products. Additionally, Hyford owns a professional aftersale customer service team. Therefore, If you have any inquiries or questions, please visit our store, have a look other products and leave your message. Your message will be highly appreciated! Welcome to Hyford!

Flowchart of washing-filling-capping 3-in-1 machine for carbonated drink

Certificate of washing-filling-capping 3-in-1 machine for carbonated drink
