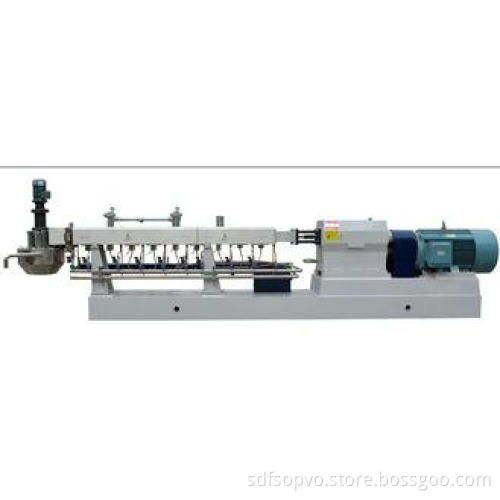

Twin Screw Plastic Extruder Machine for Compounding LLDPE L

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

Quick Detail for Plastic Extruding machine for compounding material LLDPE LDPE PP MAS:

· Compounding material: LLDPE LDPE PP MASTERBATCH

· Twin screw for even mixing

· Easy to remove and clean screw

· Less power consumption and more output

· CE certificate

Description for Plastic Extruding machine for compounding material LLDPE LDPE PP MAS:

A. Features of Extruding machine

1.High efficiency

Twin screw with more strength to push and mix the material, even mixing and even pellets

2.Better degassing

Double vacuum degassing and nature degassing to remove the water, air fully

3 .Highly automatically,

2 labors for the whole production line.

B. Applications fields of Extruding machine

Parrel co-rotating twin screw extruders have excellent mixing performance, good self-cleaning performance and flexible screw elements connection, which make them suitable for different compounding

Note: depending on different material properties, various downstream equipments are needed.

Compounding fields

CaCo3

short glass fiber

long glass fiber

Carbon black master-batch

color master batch

Machine model

Model	TSSK-20	TSSK-30	TSSK-35	TSSK-50	TSSK-65	TSSK-72	TSSK-92
Screw diameter(mm)	21.7	30	35.6	50.5	62.4	71.2	91
Rotary speed(rpm))	600	400	400/600	400/500	400/500	400/500	400/500
Mainmotor power(kw)	4	11	11/15	37/45	55/75	90/110	220/250
L/D	32-40	28-48	32-48	32-48	32-48	32-48	32-40
Capacity(kg/h)	2-10	5-30	10-80	20-150	100-300	300-6000	600-1000

Model	50B	65B	75B	75D
Screw diameter(mm)	50.5	62.4	71.2	71.2
Rotary speed(rpm)	500/600	500/600	500/600	500/600
Mainmotor power(kw)	55/75	90/110	132/160	200/250
L/D	28-48	28-48	28-48	28-48
Capacity(kg/h)	120-280	180-400	250-650	500-1200
